Four color 600mm Flexo Printing Machine
一：Parameter：
1、Model： 600mm
2、Max printing width：560mm
3、Supported printed length range：200-1000mm （normally is 350mm, different length please tell the manufacture）
4、Printing speed：10-50m/min
二：Unwinding part：
1、Effective length of roller：600mm
2、Diameter of roller core： 76mm
3、Max. diameter of unwinding material： 600mm
三：Traction Part：
1、Traction composition： rubber roller, chromium plated roller
2、Group ：Four group
四：Printing Part：
1、Printing composition ：chromium plated roller, printing roller, anilox roller, rubber roller
2、Circumference of printing roller：350mm (normally is 350mm, different size can be made, please tell the manufacture)
3、Printing plate ：resin plate or rubber plate
4、Driving type ：gear drive
5、Color register： manual, 360 degree rotate
6、Plate roller rising system：munual (pneumatic can be custom-made)
五：Heating and drying part
1、Mode：air blower first, then heating
2、Heater number： six units
3、Heating power： 4kw
4、Big air blower： two pcs
5、Blower power： 1.3kw
六：Motor part
1、Main motor：3kw
2、Ink motor：0.8kw
3、Host machine adopts inverter speed regulation
七：Rewinding part
1、Effective length of roller：600mm
2、Diameter of roller core: 76mm
3、Max. diameter of rewinding material ：600mm
八：Main configuration list
1、Main motor（frequency motor）： one unit (ShangHai)
2、 Frequency converter：one set (Zhe Jiang)
3、Ink motor:4 units (Mai Li)
4、 Air blower：two sets (Feng Yang)
5、Aluminum guide rolls：one set (Bai Xiao)
6、 Anilox roller：Four unit (Huang Xin)
7、 Rubber roller： Four unit (Ming Tai)
8、 Printing roller：Four unit (Ming Tai)
9、Low-voltage apparatus：（CHINT）
10、 Switch：（Schneider）
11、Control panel：one set
12、Main frame： one set
13、Voltage：three phase 380V, 50HZ (can be custom-made)
|
Company Brief Introduction
|
|

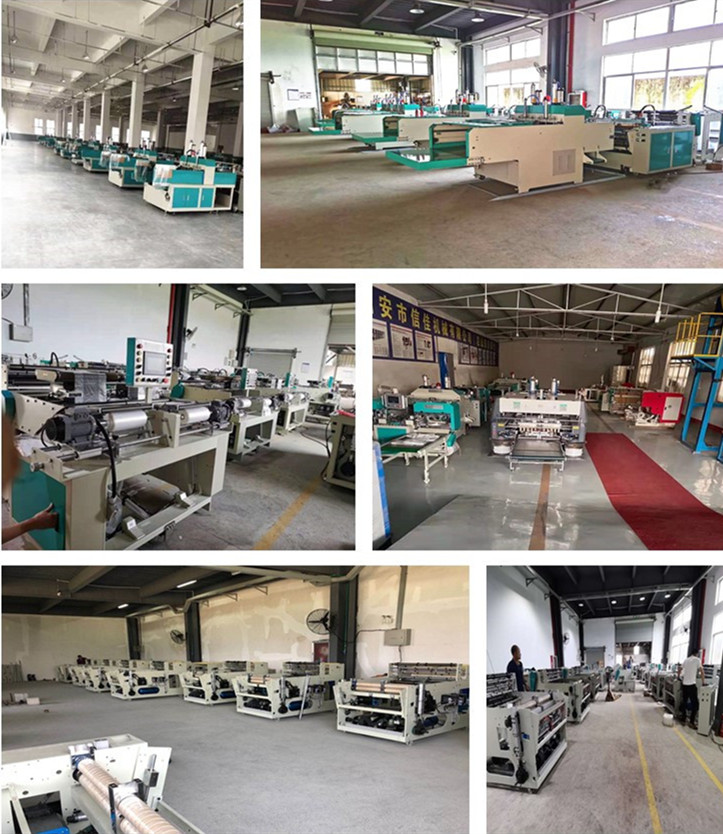

Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film. Xinjia machines all equip high quality brand configuration such as DELTA, F&C, SMC,PANASONIC , FOTEK, AIRTAC,IDEC ,INOVANCE etc.
2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change 3.Flat Bag Making Machine(Heat Cutting /Cold Cutting ) 4.Rolling PE/Biodegradable t-shirt Bag Making Machine 5.T-Shirt Making Machine With Automatic Folding /Binding 6.Milk Tea Cup Holder Bag Making Machine 7.Calendar Bag Making Machine 8.Garbage Bag Making Machine Coreless 9.Draw Tape Garbage Bag Making Machine 10.Disposable TPE , CPE ,PE Glove Making Machine
Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on. Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.
|
1.Q:Are you machinery factory or trading company?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
