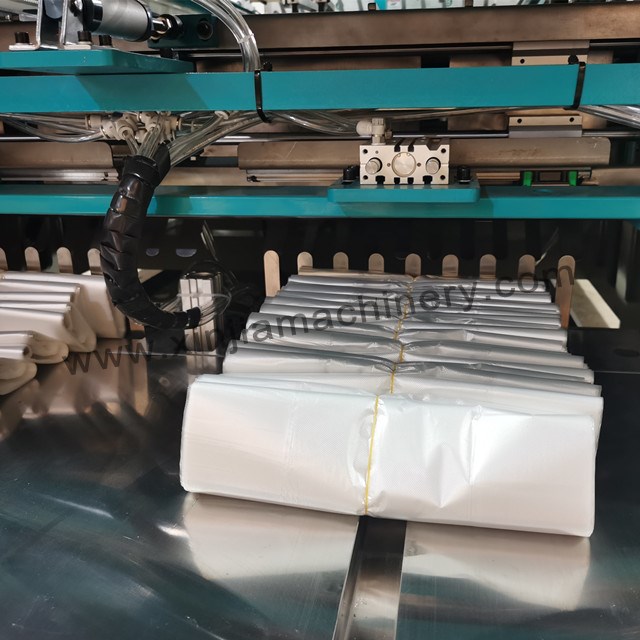

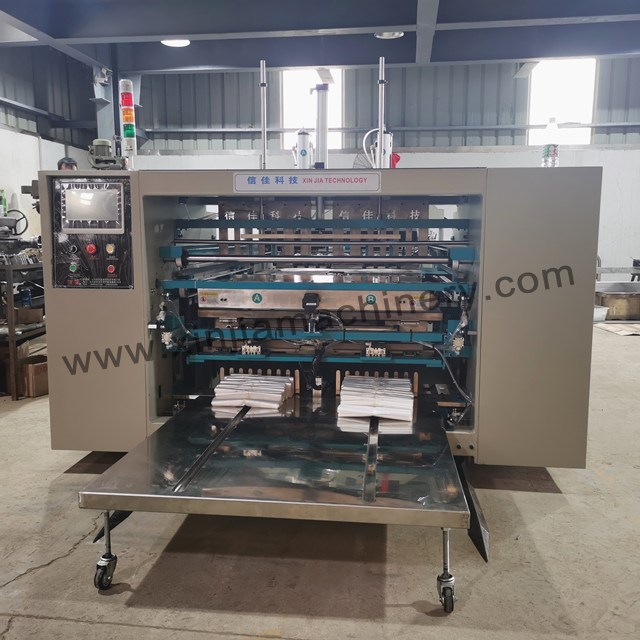

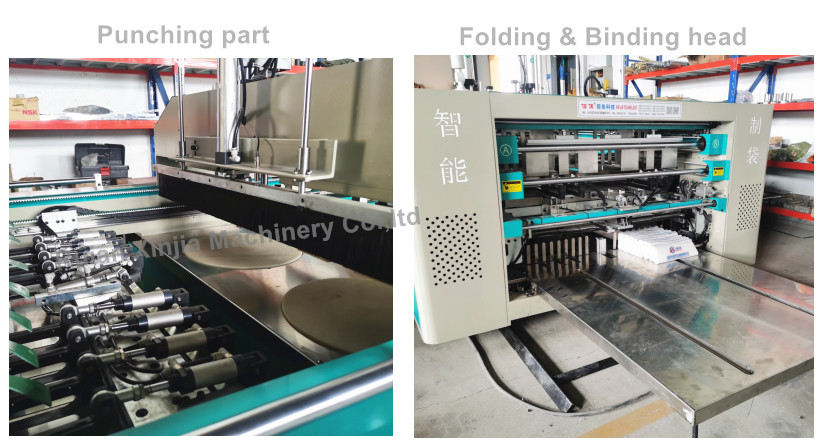

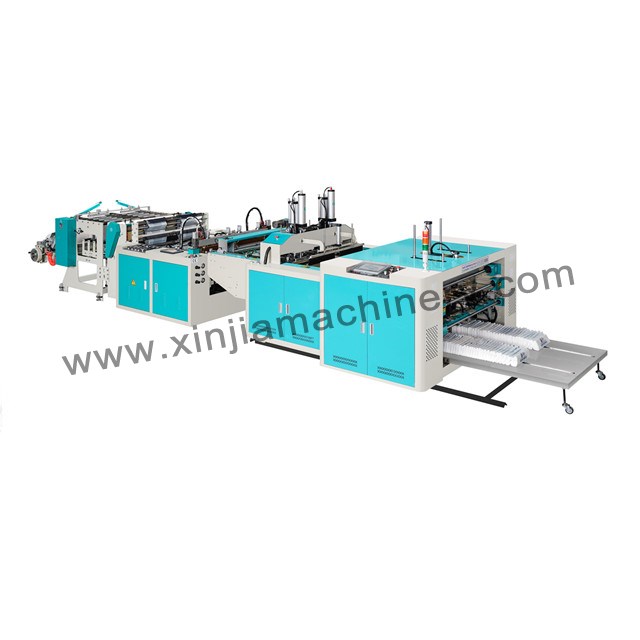

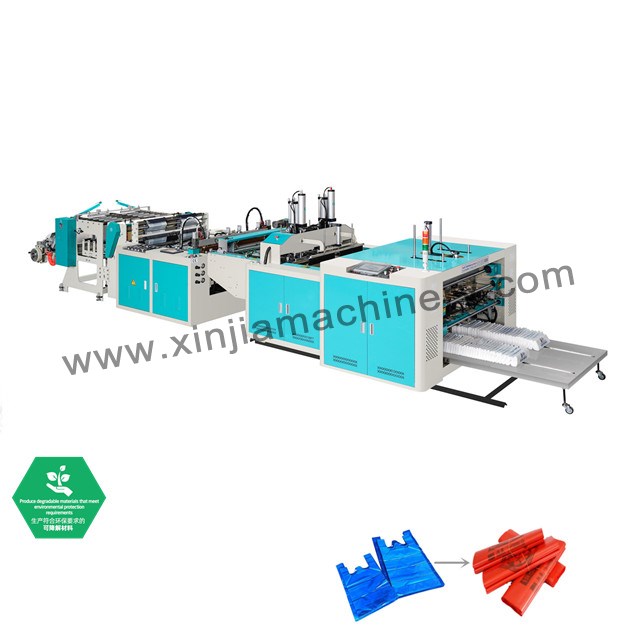

Full Automatic Polythene PE and fully biodegradable T-shirt vest bag making machine with automatic bag folding binding ,this machine is innovated on the basis of high speed T-shirt bag making machine, equips with automatic binding function, it's able to strap the PE and biodegradable T-shirt bags with rubber band, instead of the traditional worker manually strapping, more advanced and full automatic, it can produce three-fold bags and four-fold bags, the folding automatic strapping and folding without strapping function adjustment. Adopts heat sealing heat cutting technology, it's able to manufacture nature color or printed T-shirt bags, double servo motors pulling material, PLC controlling and touch screen operation, the T-shirt bags sealing, cutting, punching, strapping are finished in one process, full automatic working, saving labor cost.
| Feature |
|
Full Automatic Polythene PE and fully biodegradable T-shirt vest bag making machine with automatic bag folding strapping ,this machine is innovated on the basis of high speed T-shirt bag making machine, equips with automatic strapping function, it's able to strap the PE and biodegradable T-shirt bags with rubber band, instead of the traditional worker manually strapping, more advanced and full automatic, it can produce three-fold bags and four-fold bags, the folding automatic strapping and folding without strapping function adjustment. Adopts heat sealing heat cutting technology, it's able to manufacture nature color or printed T-shirt bags, double servo motors pulling material, PLC controlling and touch screen operation, the T-shirt bags sealing, cutting, punching, strapping are finished in one process, full automatic working, saving labor cost.

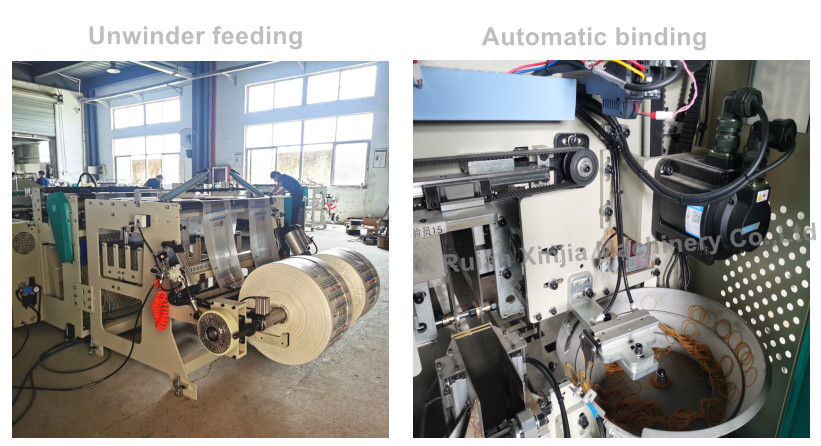

In the machine, equips with auto material loader, pneumatic loading, double lanes working same time, double photoelectric eyes, tracking color label, auto counter, auto alarm, the whole machine is drove by main motor, controlling by frequency inverter, for PE and biodegradable T-shirt bag production, this machine is ideal equipment.
|

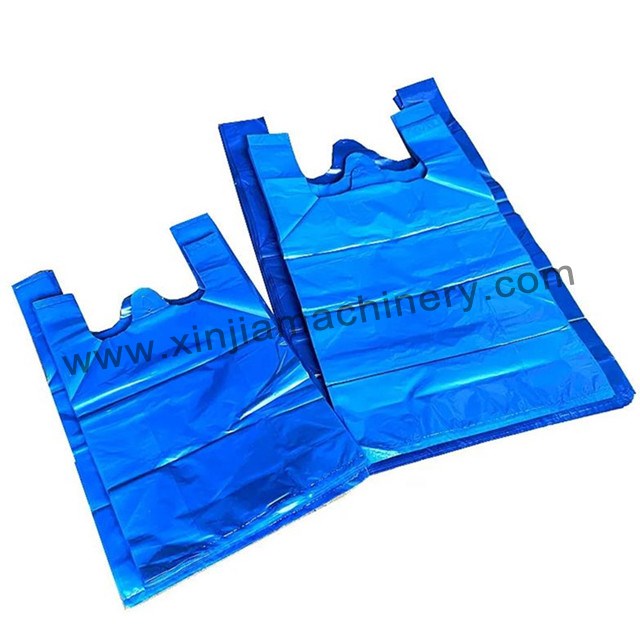

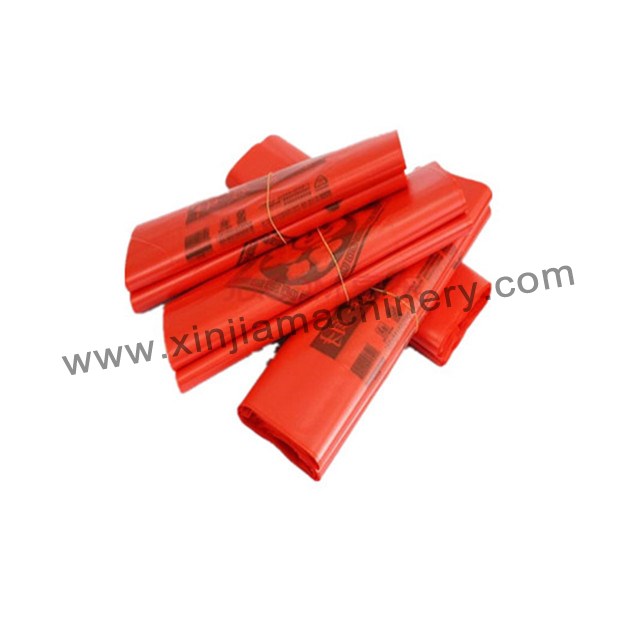

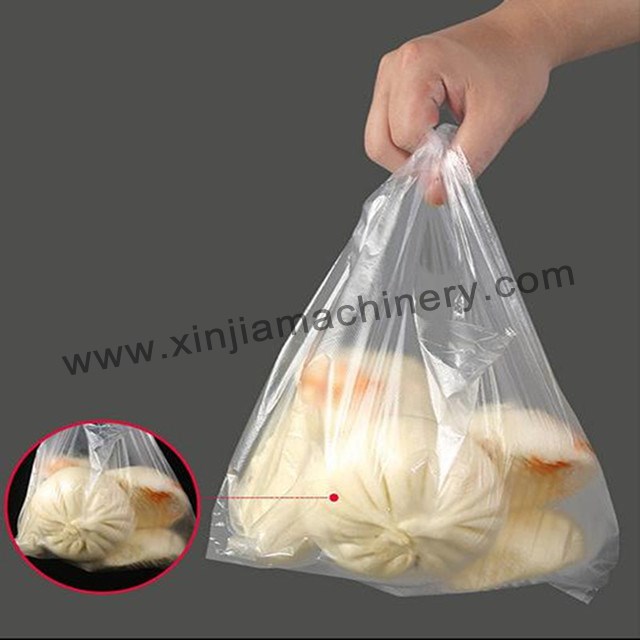

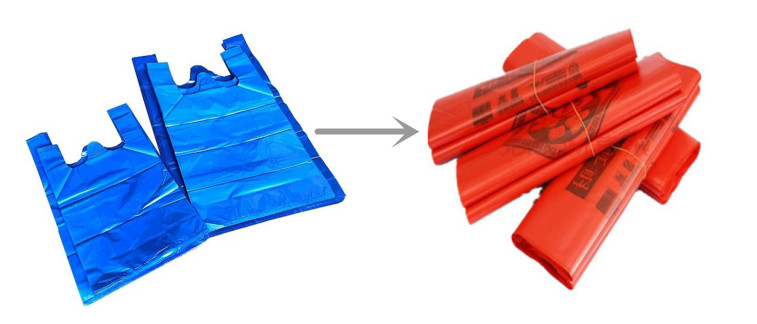

| Finished Bag |
| Main Technical Parameters | |
| Model | XJBXJ-400X2SVT/500X2SVT |
| Material | HDPE LDPE BIODEGRADABLE FILM |
| Max.effective working width | 2600mm |
| Packaging | A/B double line folding packing |
| Hot needle distance | 350(MM)/450(MM)/550(MM) |
| Table width | 818MM)/918(MM) |
| Table height | 830(MM) |
| Bag-making length | 200-750(MM) adjustment |
| Bag-making width | 100-230MM/200-330(MM)/200-430(MM) |
| Bag-making speed | One channel6-7times(min) (1time have 30-100pcs) |
| The type of driven | Electromotion/pneumatic/belt driven |
| Maximum air consumption | 0.8MPA |
| Max .total Power | 12KW |
| SPECIFICS |
|
Company Brief Introduction
|
|
Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film. Xinjia machines all equip high quality brand configuration such as INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc.
1.Plastic PE/Biodegradable T-shirt Bag Making Machine
2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change
3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )
4.Rolling PE/Biodegradable t-shirt Bag Making Machine
5.T-Shirt Making Machine With Automatic Folding /Binding
6.Milk Tea Cup Holder Bag Making Machine
7.Calendar Bag Making Machine 8.Garbage Bag Making Machine Coreless 9.Draw Tape Garbage Bag Making Machine 10.Disposable TPE , CPE ,PE Glove Making Machine
Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on. Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future. |
|
Workshop |
| Exhibition |
