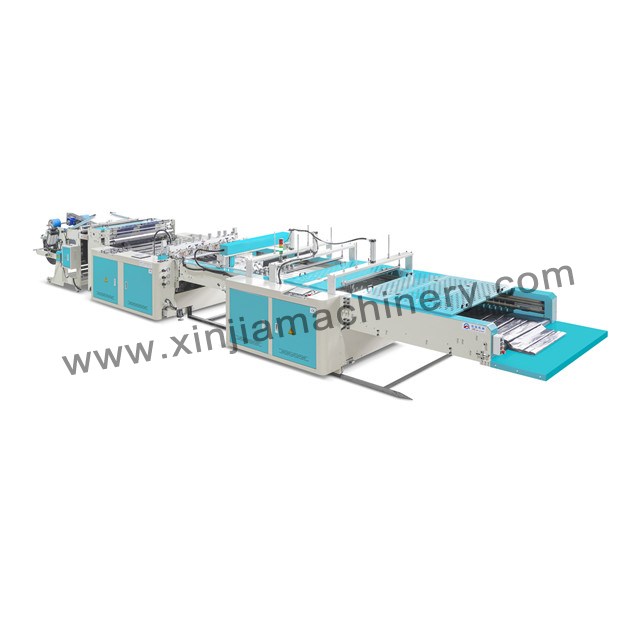

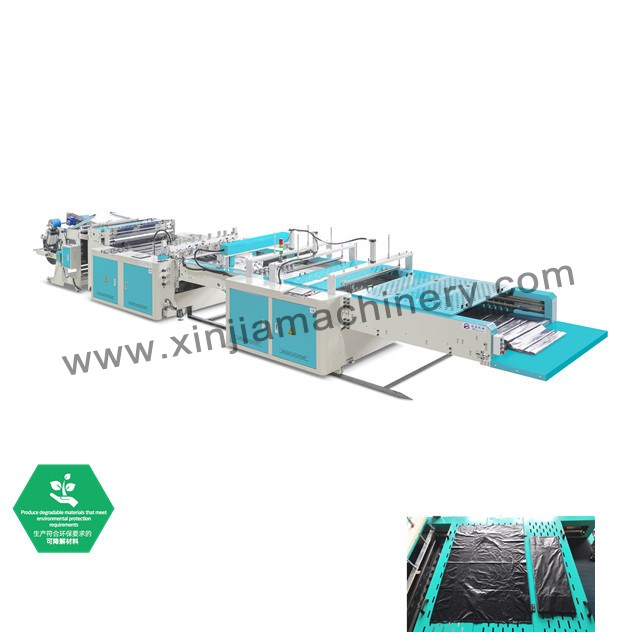

High Speed Heat Cutting No Tension No Stretch No Needle Hole Automatic Folding 2times Garbage Flat Bag Making Machine,PRODUCTS,Ruian Xinjia Machinery Co., Ltd

PRODUCT DETAILS

Feature:

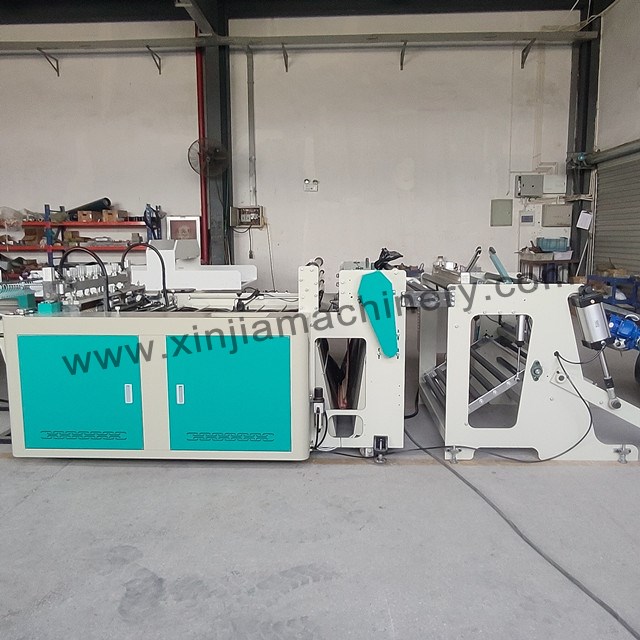

This Garbage flat bag making machine is special design for single line high speed production . 2 independent computers control design and driven by full servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing hdpe,ldpe garabage flat bags.

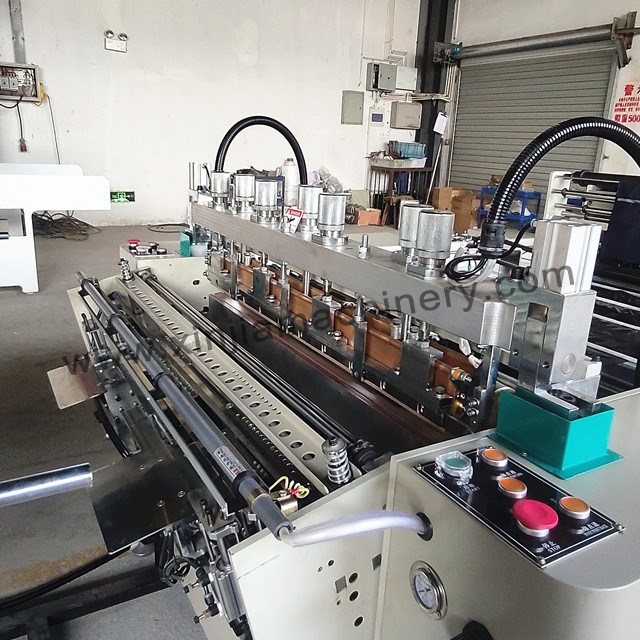

1.New designed

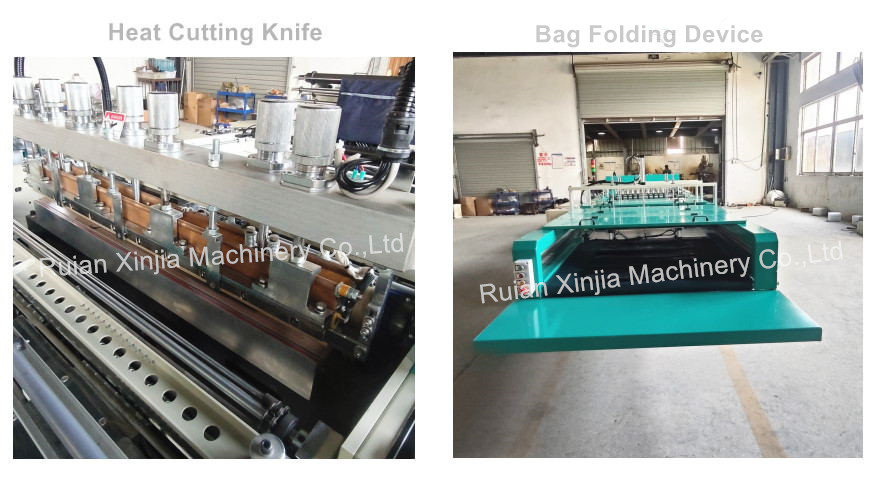

Sealing blade
when blade need be cleared up, it can be turned 100° And fixed. It will be safe and easy to take care.
Auto Punching Machine
Adopt linear slide system and servo motor to control ,its durable ,stably and the bag more neat.

2.High output design

This machine is specialized design for the Garbage bag ,It can automatically finished production in single line from feeding to the finished production , and it can be automatically alarm in case of have trouble in production , which can avoid waste the bags and protect the machine from being damaged.

3Easy operation

This machine adopt an easy operation panel .The troubles and cause can be displayed on the operation panel,which makes it easier for the user to understand the cause and troubles and reduce the time to stop the machine .

4.Servo Motor Feeder

This machine adopt a servo motor feeder in order to assure and accurate length of bag. Thus the user has no troubles in affecting the length of bag due ro maintenance and mechanic damages.

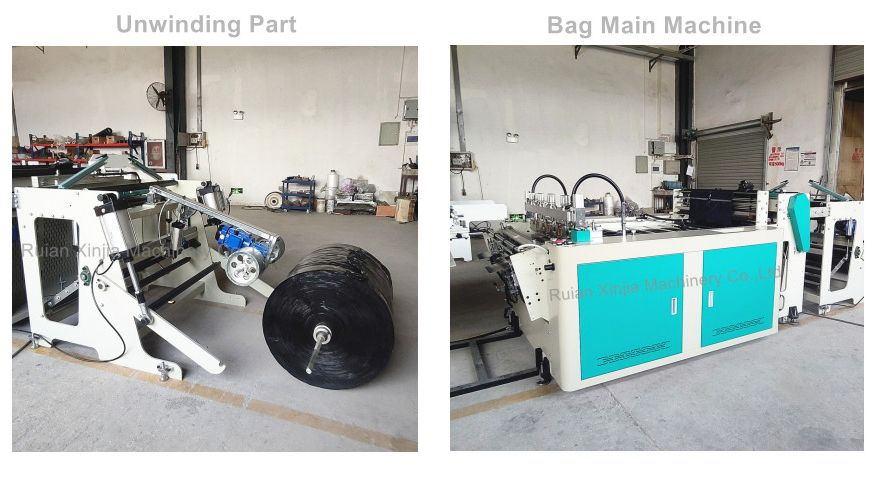

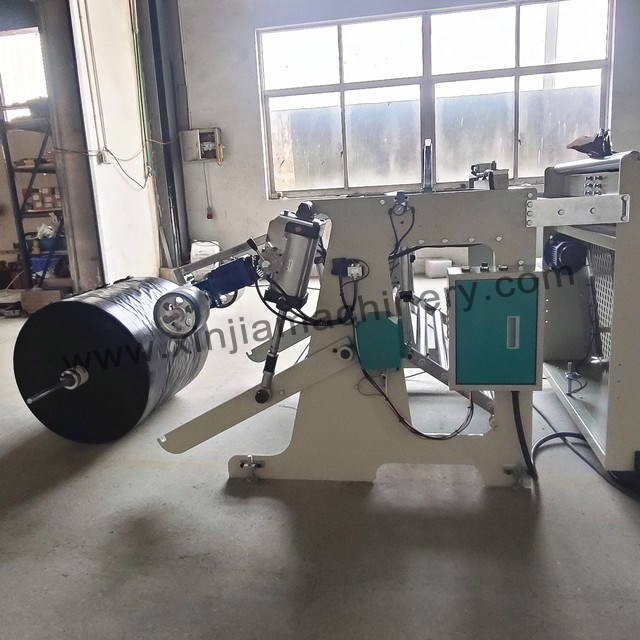

5.Auto Feeder

This machine adopt an auto feeder connected to the mater motor and can coordinate with it in speed.It can be automatically adjusted,no manual adjustment , coordinate the expansion controller to reduce the fatigue of the feeder in order to keep the pulling force of the plastic bag .

6.High quality accessories

This machine adopt high quality accessories with higher efficiency to reduce the troubles in producing ,the feeder is coordinated with a blower to make the plastic bag fed stably.

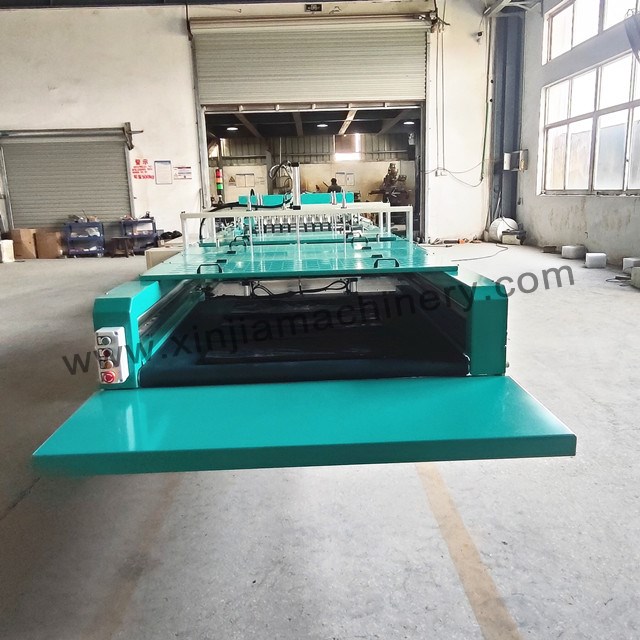

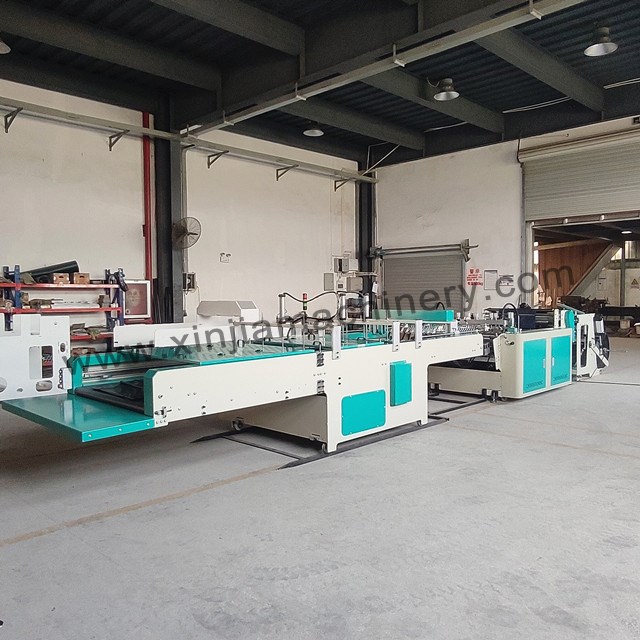

7.Folding machine
Folding machine running way adopts high-precision linear slide device ,servo motor control , automatic 2 times folding , save labor .

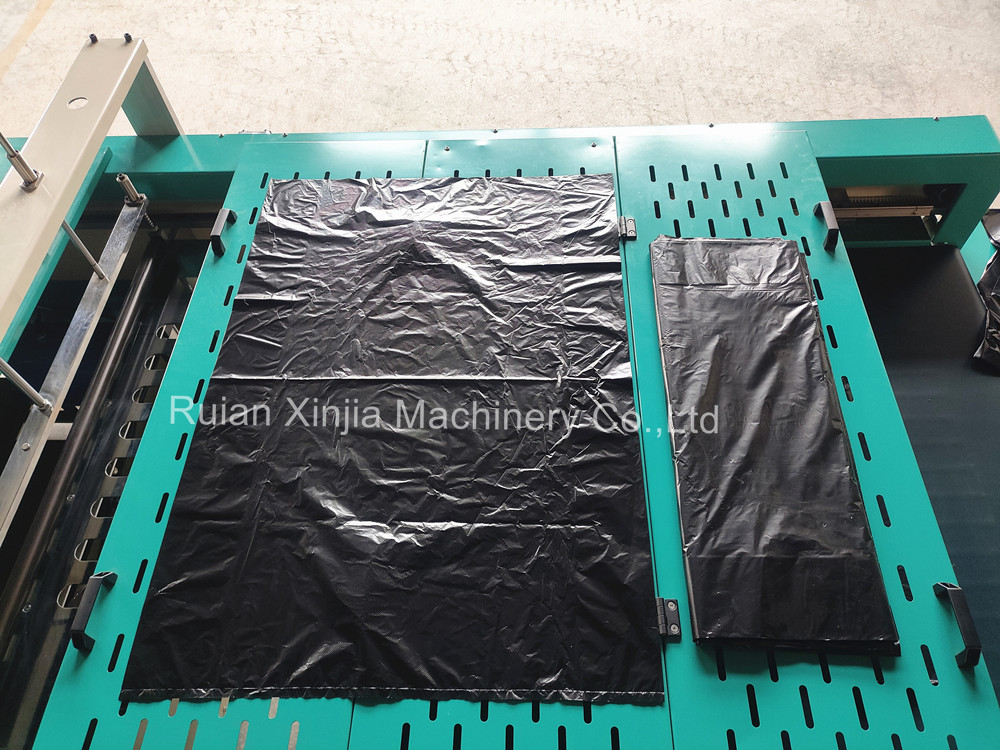

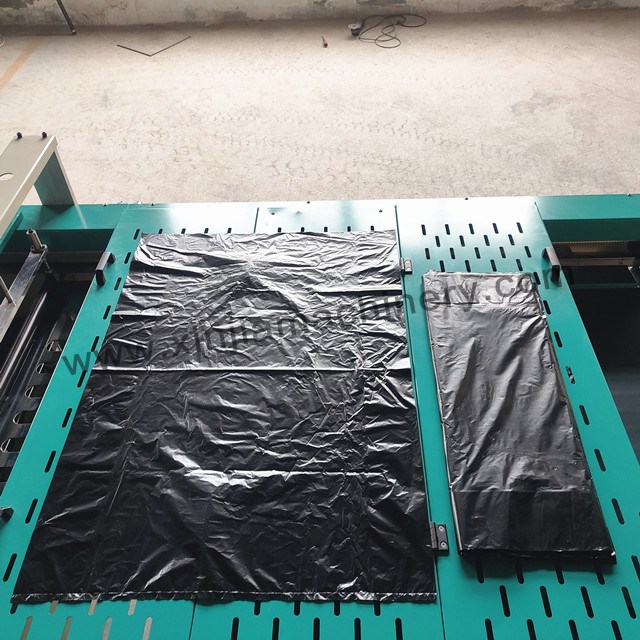

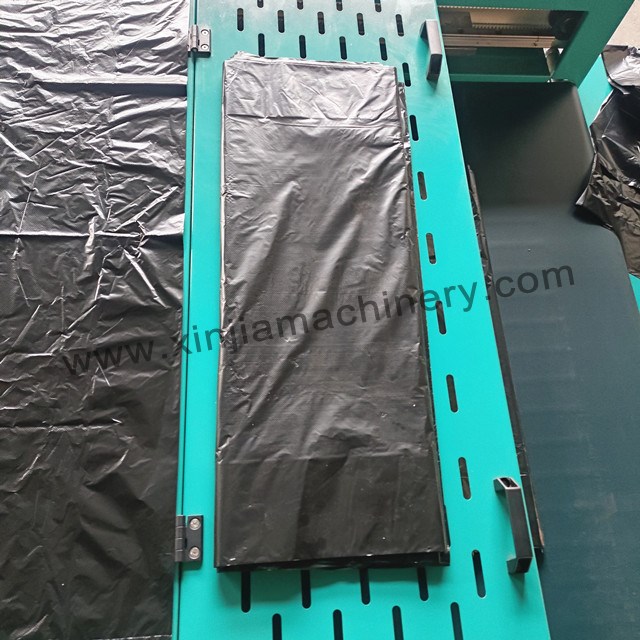

Finished Bag

Main Technical Parameters
Model	XJBXJ-F800	XJBXJ-F1000
Material	HDPE LDPE FILM	HDPE LDPE FILM
Max bag width	400-730mm	400-900mm
Max bag length	1100mm	1500
Plastic film Thickness	0.008-0.05mm	0.008-0.05mm
Production speed	100m/min	100m/min
Electric Hot Rate	4.5kw	4.5kw
Total power	10kw	12kw
Overall Dimension (LWH)	700017801300mm	950017801300mm
Machine Weight	3200kg	3300kg

SPECIFICS

Company Brief Introduction

Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film.

Xinjia machines all equip high quality brand configuration such as INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc.

1.Plastic PE/Biodegradable T-shirt Bag Making Machine

2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change

3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )

4.Rolling PE/Biodegradable t-shirt Bag Making Machine

5.T-Shirt Making Machine With Automatic Folding /Binding

6.Milk Tea Cup Holder Bag Making Machine

7.Calendar Bag Making Machine

8.Garbage Bag Making Machine Coreless

9.Draw Tape Garbage Bag Making Machine

10.Disposable TPE , CPE ,PE Glove Making Machine

Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on.

Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.

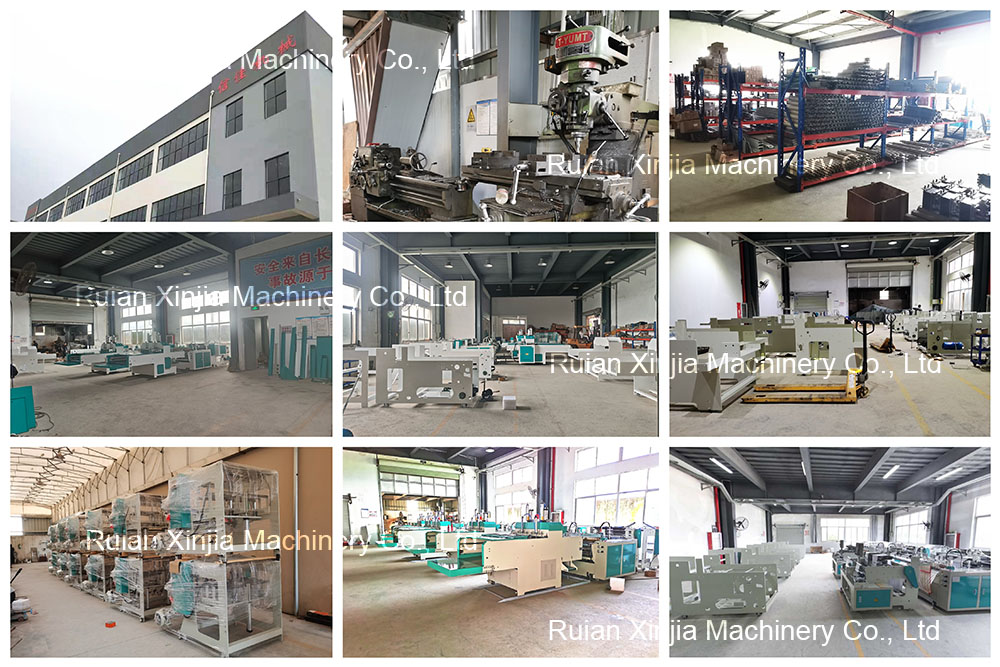

Workshop

Exhibition

FAQ:

1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 21 years
and focus on bag making machine,printing machine,film blowing machine,etc.
2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 25-30 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
7.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc. And all our machine will do running test before shipping.
8 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
9.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
10.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
