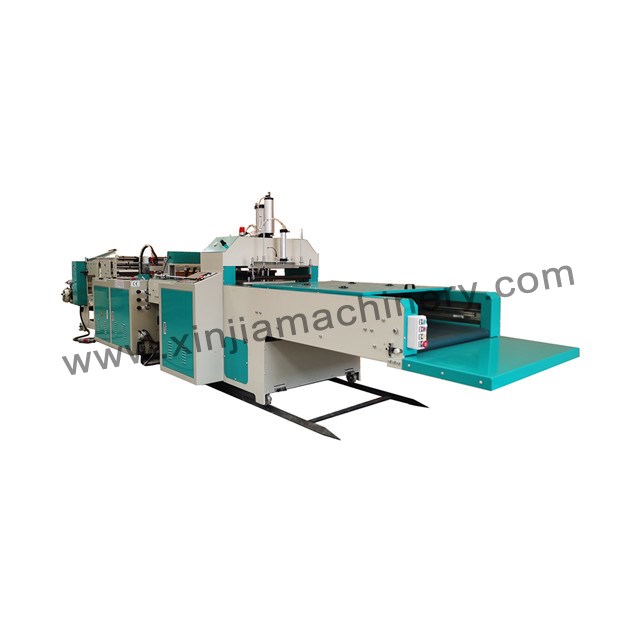

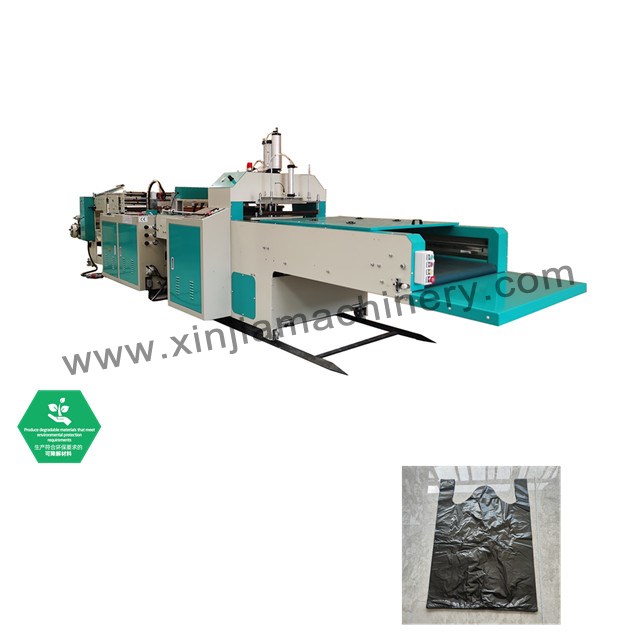

The T-shirt bag making machine is special design for single line high speed T-shirt bag production . independent computers control design and driven by servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable hdpe,ldpe/biodegradable T-shirt bags.
| Feature |
|
TheT-shirt bag making machine is special design for single line high speed T-shirt bag production . independent computers control design and driven by servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable hdpe,ldpe T-shirt Vest bags.

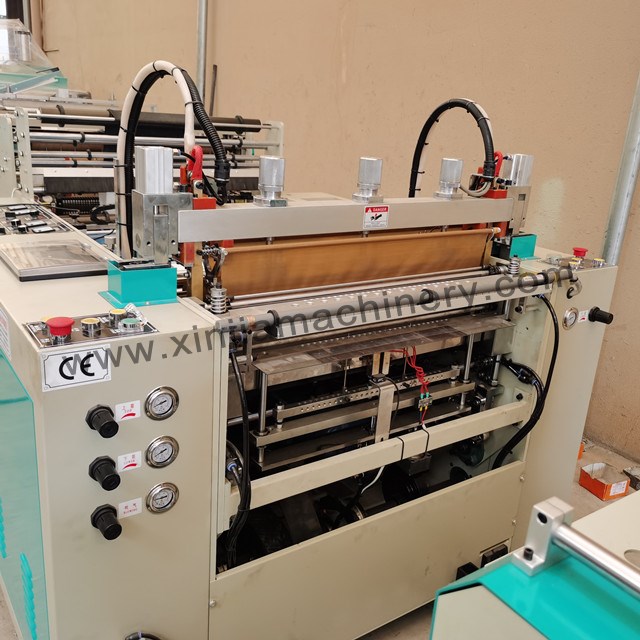

Sealing blade when blade need be cleared up, it can be turned 100° And fixed. It will be safe and easy to take care. Auto Punching Machine Adopt linear guide system and servo motor to control ,its durable ,stably and the bag more neat.
2.High output design
This machine is specialized design for the T-shirt bag ,It can automatically finished production in single line from feeding to the finished production , and it can be automatically alarm in case of have trouble in production , which can avoid waste the bags and protect the machine from being damaged.
3.Easy operation
This machine adopt an easy operation panel .The troubles and cause can be displayed on the operation panel,which makes it easier for the user to understand the cause and troubles and reduce the time to stop the machine .
4.Servo Motor Feeder
This machine adopt a servo motor feeder in order to assure and accurate length of bag. Thus the user has no troubles in affecting the length of bag due ro maintenance and mechanic damages.

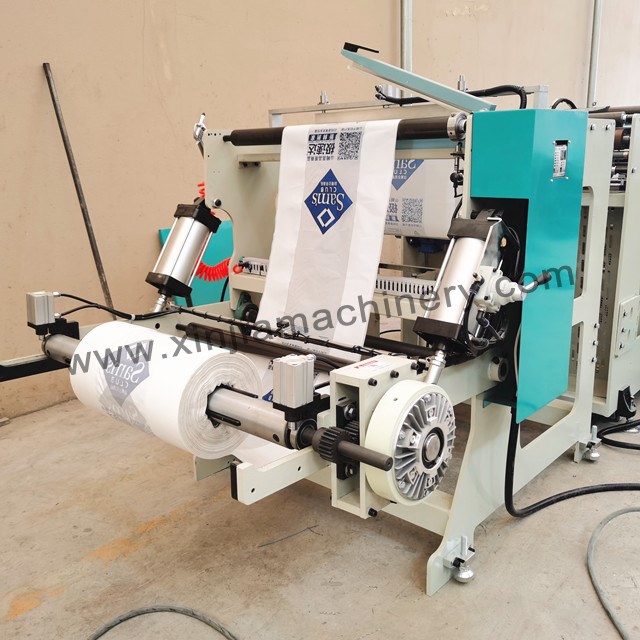

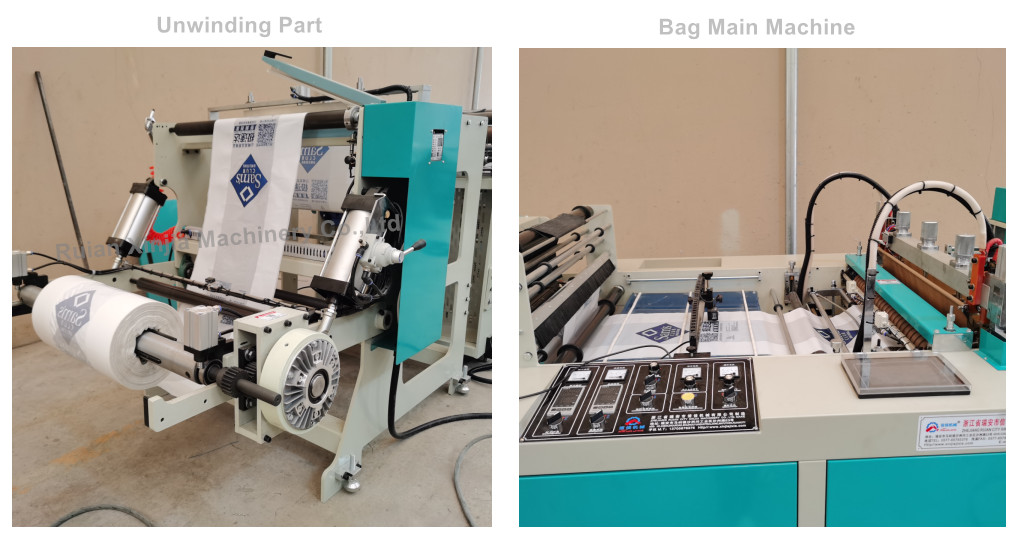

5.Auto Feeder
This machine adopt an auto feeder connected to the mater motor and can coordinate with it in speed.It can be automatically adjusted,no manual adjustment , coordinate the expansion controller to reduce the fatigue of the feeder in order to keep the pulling force of the plastic bag .
6.High quality accessories
This machine adopt high quality accessories with higher efficiency to reduce the troubles in producing ,the feeder is coordinated with a blower to make the plastic bag fed stably.

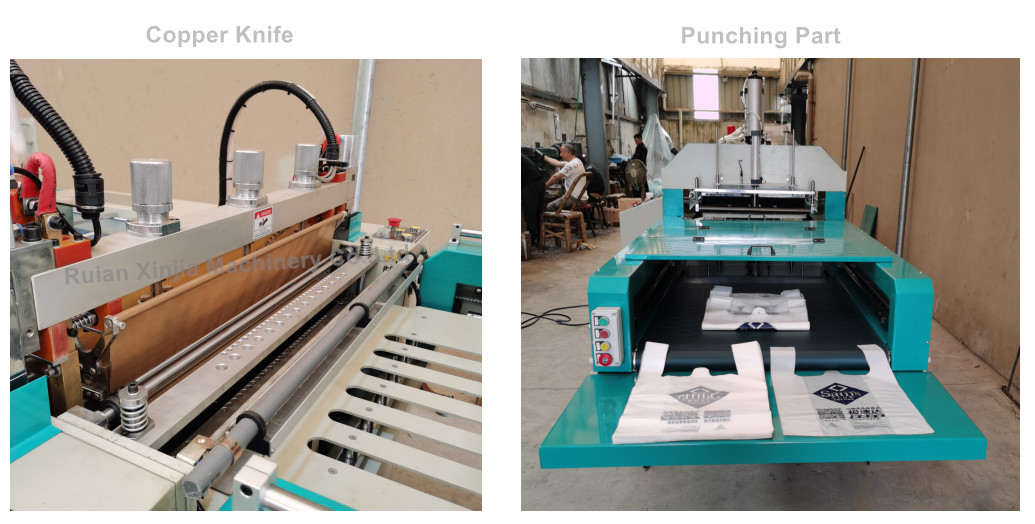

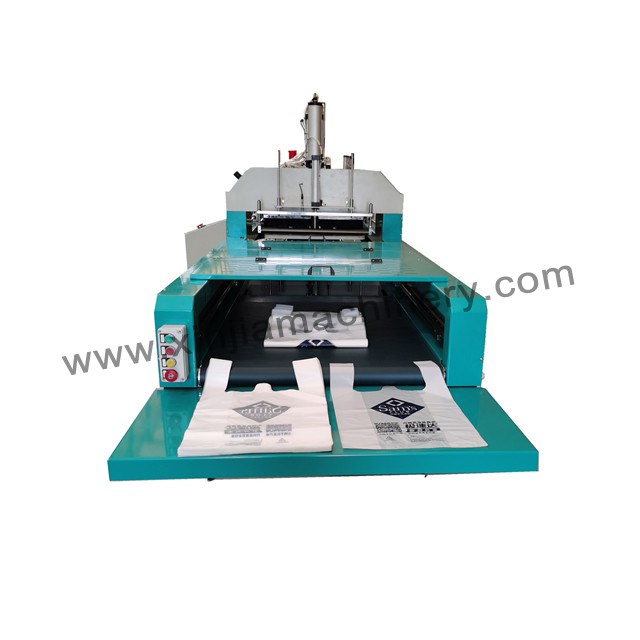

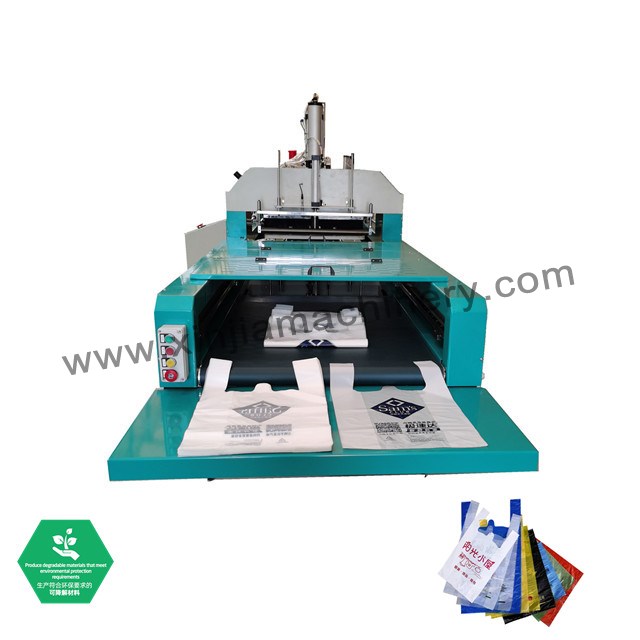

7.Punching part
Punching part running way adopts high-precision linear slide device ,servo motor control , Japanese pneumatic, and Taiwan booster cylinder.
|
|

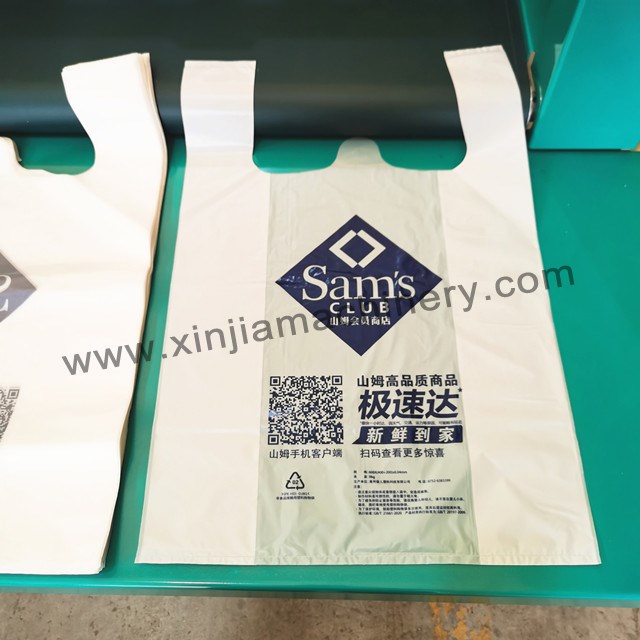

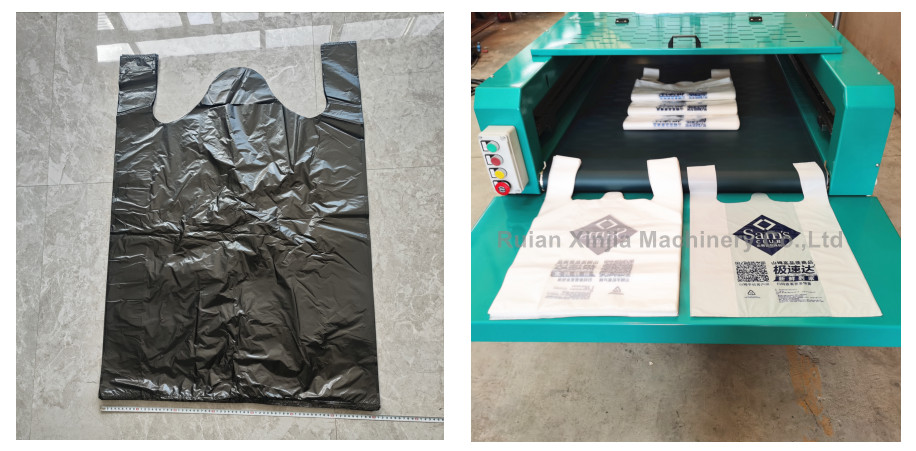

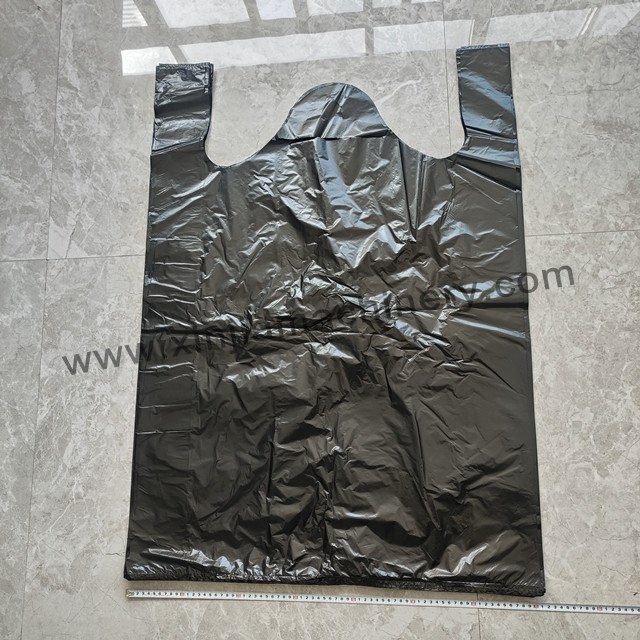

Finished Bag |
| Main Technical Parameters |
|
||
| Model | XJBXJ-750SVTF | XJBXJ-850SVTF | XJBXJ-1000SVTF |
| Raw material | HDPE ,LDPE | ||
| Max bag width | Max.700mm | Max.800mm | Max.900mm |
| Max bag length | Max.1100mm | Max.1100mm | Max.1200mm |
| Plastic film Thickness | 0.012-0.05mm | 0. 012-0.05mm | 0.012-0.05mm |
| Production speed | Max. 300pcs/min | Max.300pcs/min | Max.300pcs/min |
| Electric Hot Rate | 4kw | 4.5kw | 5kw |
| Total power | 7kw | 8kw | 10kw |
| Overall Dimension (L*W*H) | 700x138x180cm | 700x158x180cm | 700x178x180cm |
| Machine Weight | 3000kg | 3100kg | 3200kg |
| SPECIFICS |
|
Company Brief Introduction |
|
Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film. Xinjia machines all equip high quality brand configuration such as INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc.
1.Plastic PE/Biodegradable T-shirt Bag Making Machine
2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change
3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )
4.Rolling PE/Biodegradable t-shirt Bag Making Machine
5.T-Shirt Making Machine With Automatic Folding /Binding
6.Milk Tea Cup Holder Bag Making Machine
7.Calendar Bag Making Machine 8.Garbage Bag Making Machine Coreless 9.Draw Tape Garbage Bag Making Machine 10.Disposable TPE , CPE ,PE Glove Making Machine
Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on. Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.
|
|

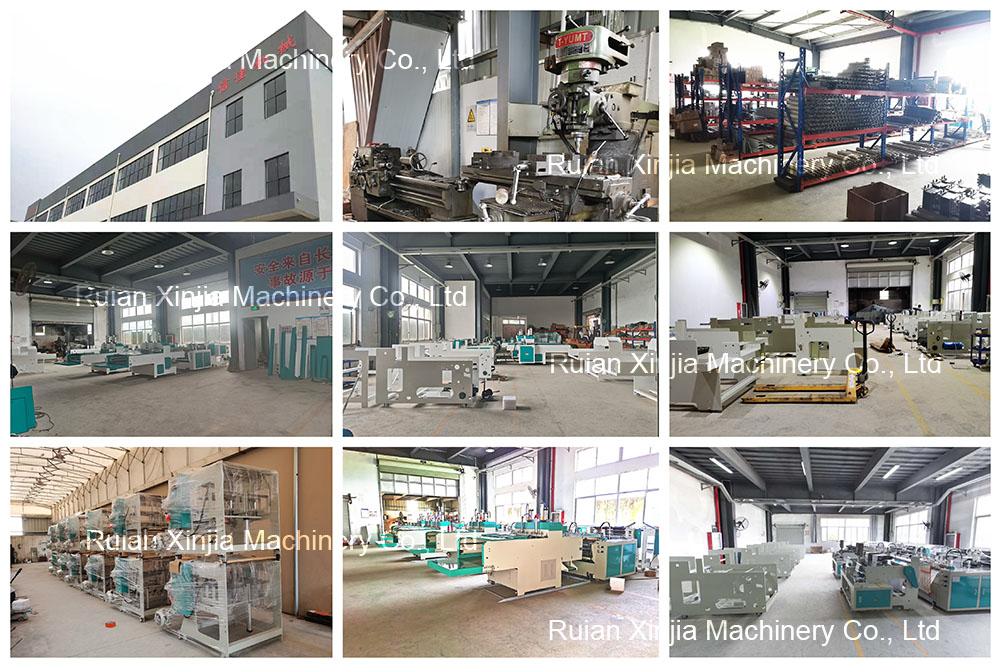

Workshop |
|
Exhibition |
1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 21 years
and focus on bag making machine,printing machine,film blowing machine,etc.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 25-30 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
7.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc. And all our machine will do running test before shipping.
8 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
9.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
10.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
