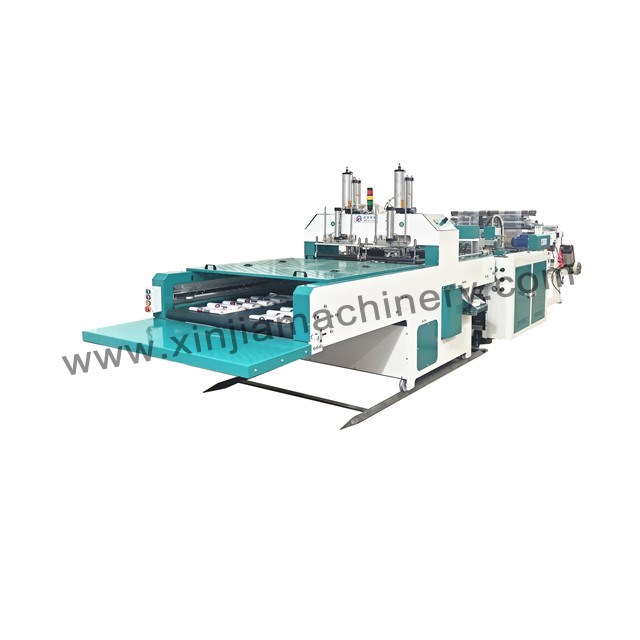

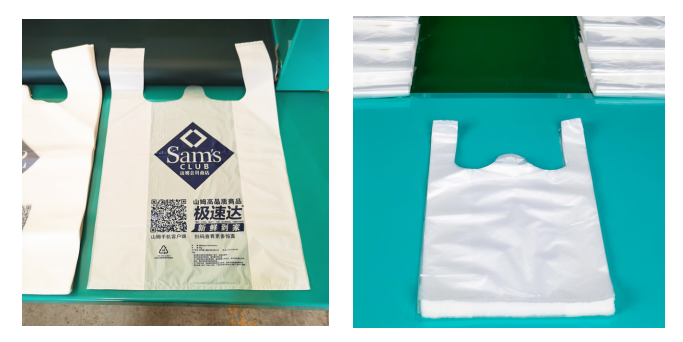

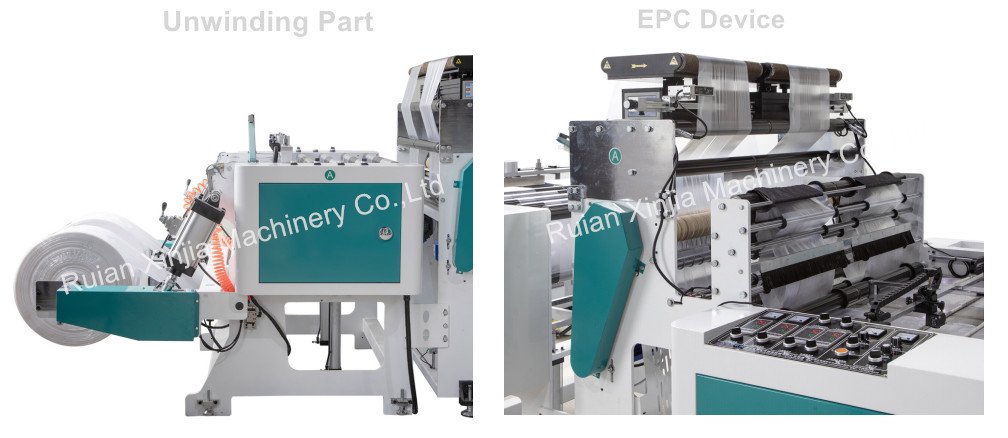

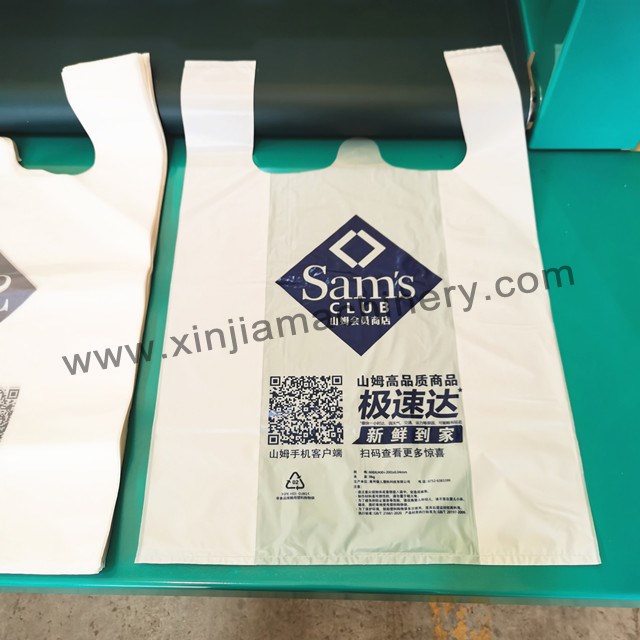

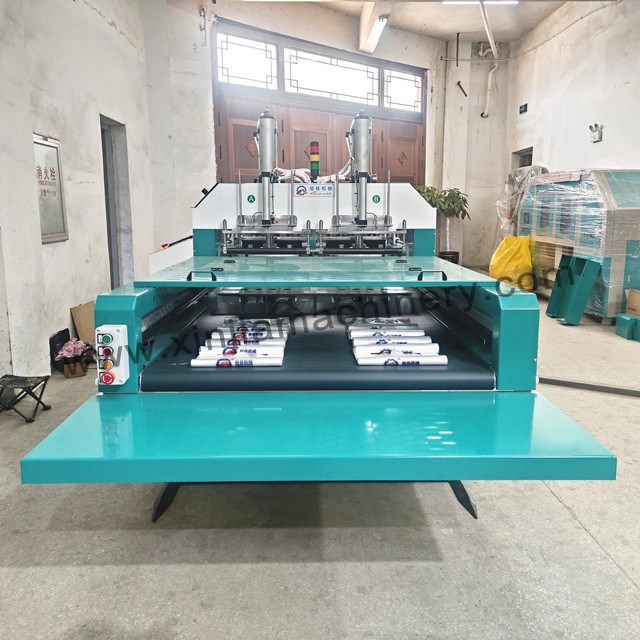

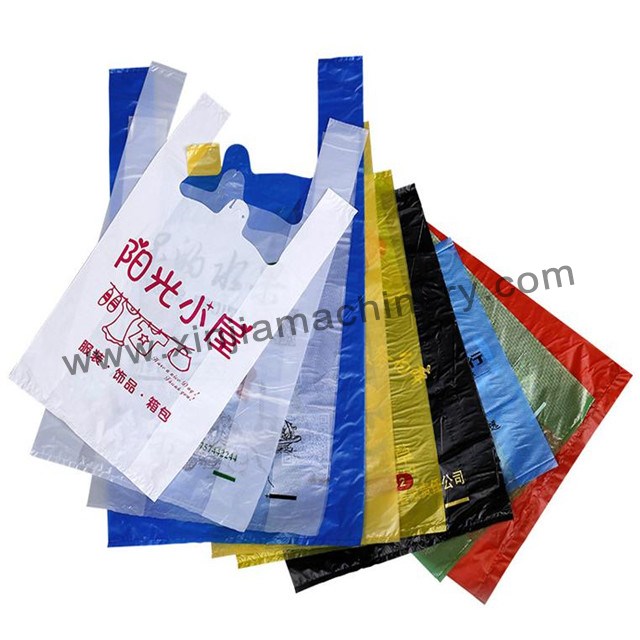

This T-shirt bag making machine is special design for 2 lines high speed T-shirt bag production . 2 independent computers control design and driven by 3.6kw servo motor with Epc device to self correcting, high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable hdpe,ldpe film T-shirt bags.
| Feature |
|
These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is hdpe,ldpe film,.

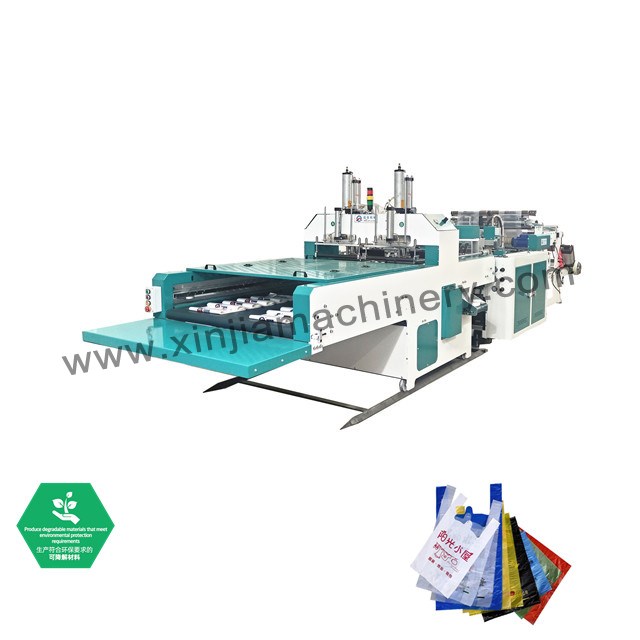

XJBXJ-500X2 T-shirt bag making machine is special design for 2 lines high speed T-shirt bag production . 2 independent computers control design and driven by servo motors ,Unique pressure maintaining function for thick bag,sealing more firmly , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable shopping T-shirt bags.
1.High output design
This machine is specialized design for the T-shirt bag ,It can automatically finished production in two lines from feeding to the finished production , and it can be automatically alarm in case of have trouble in production , which can avoid waste the bags and protect the machine from being damaged.
2.Easy operation
This machine adopt fully servo motors operation panel ,special keep pressure function for thick bag , the sealing of bag will be more firmly and excellent ,The troubles and cause can be displayed on the operation panel,which makes it easier for the user to understand the cause and troubles and reduce the time to stop the machine .
3.Servo Motor Feeder
This machine adopt a servo motor feeder in order to assure and accurate length of bag. Thus the user has no troubles in affecting the length of bag due to maintenance and mechanic damages.

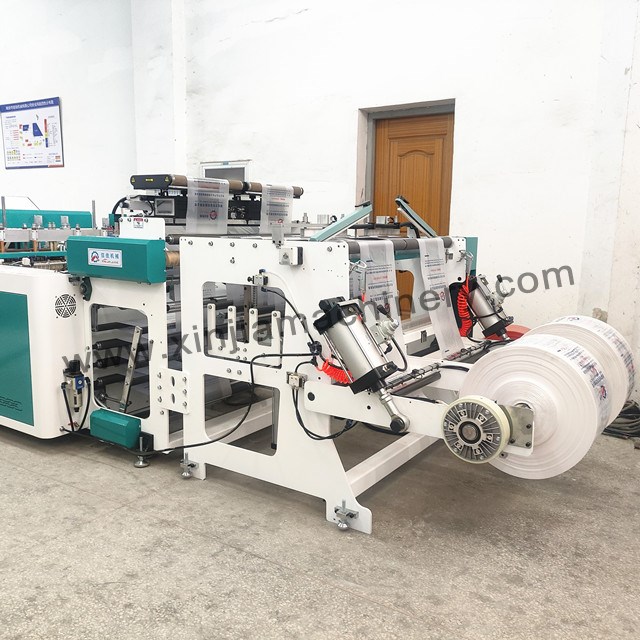

4.Auto Feeder
This machine adopt an auto feeder connected to the mater motor and can coordinate with it in speed.It can be automatically adjusted,no manual adjustment , coordinate the expansion controller to reduce the fatigue of the feeder in order to keep the pulling force of the plastic bag .
5.High quality accessories
This machine adopt high quality accessories with higher efficiency to reduce the troubles in producing ,the feeder is coordinated with a blower to make the plastic bag fed stably.

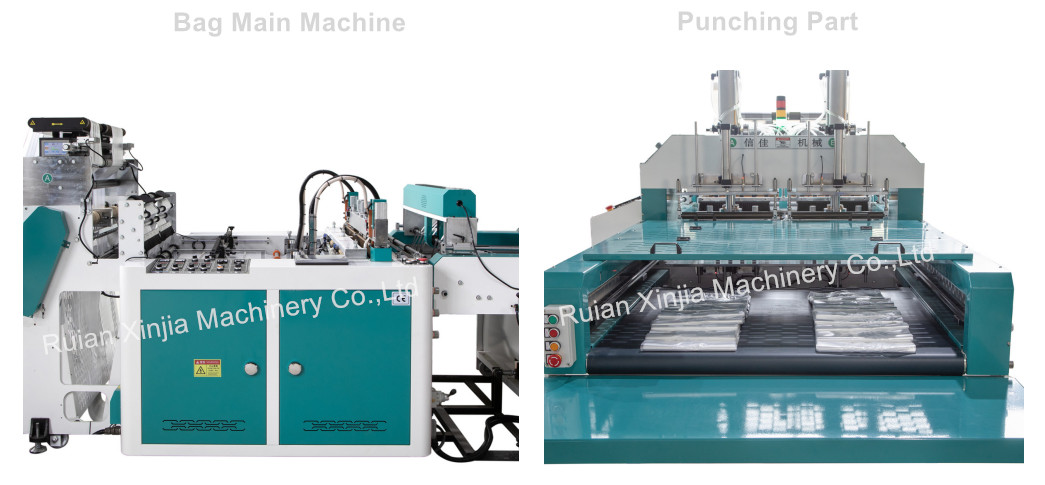

6.Punching part
Punching part running way adopts high-precision linear slide device ,servo motor control , Japanese pneumatic.
|
| Main Technical Parameters | |||
| Model | XJBXJ-400X2 | XJBXJ-500X2 | XJBXJ-600X2 |
| Material | HDPE LDPE FILM | HDPE LDPE FILM | HDPE LDPE FILM |
| Max bag width | 150-330mm | 150-430mm | 200-530mm |
| Max bag length | 300-650mm | 300-750mm | 300-750mm |
| Plastic film Thickness | 0.012-0.05mm | 0.012-0.05mm | 0.012-0.05mm |
| Production speed | 300pcs*2lines | 300pcs*2lines | 250pcs*2lines |
| Electric Hot Rate | 4.5kw | 4.5kw | 5kw |
| Total power | 8kw | 10kw | 10kw |
| Overall Dimension (L*W*H) | 7200*1580*1800mm | 7320*2000*1800mm | 7320*2160*1800mm |
| Machine Weight | 3000kg | 3100kg | 3300kw |
| SPECIFICS |
|
|
Company Brief Introduction
|
|
Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 24 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film.
Xinjia machines all equip high quality brand configuration such as INOVANCE ,DELTA,NSK , F&C, SMC,PANASONIC , FOTEK, AIRTAC,IDEC etc.
1.Plastic PE/Biodegradable T-shirt Bag Making Machine
2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change
3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )
4.Rolling PE/Biodegradable t-shirt Bag Making Machine
5.T-Shirt Making Machine With Automatic Folding /Binding
6.Milk Coffee Cup Holder Bag Making Machine
7.Calendar Bag Making Machine
8.Garbage Bag Making Machine Coreless
9.Draw Tape Garbage Bag Making Machine
10.Disposable TPE , CPE ,PE Glove Making Machine
Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on.
Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.
|
