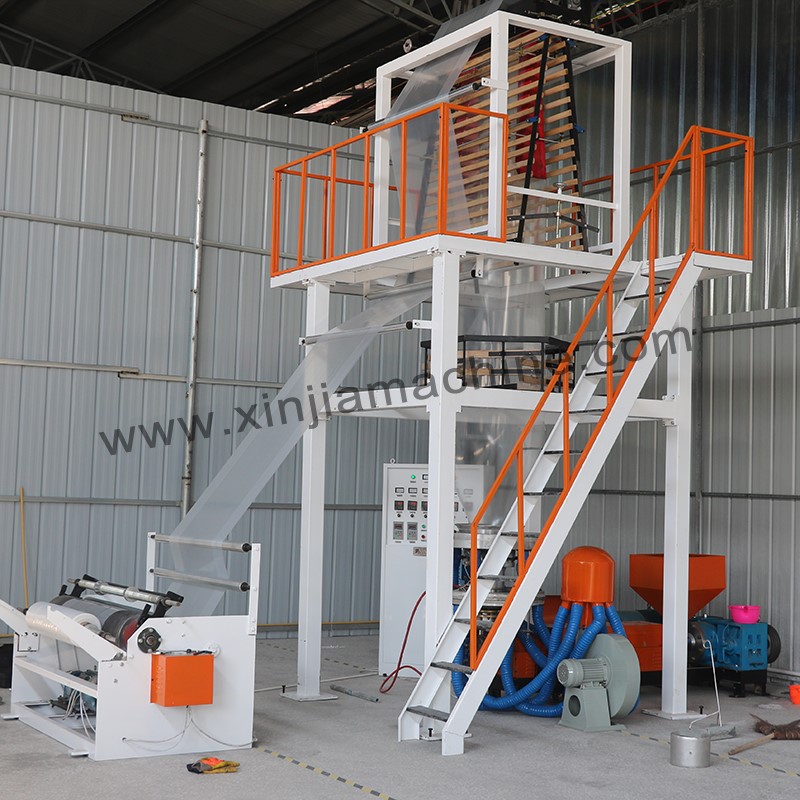

A60-1000 Full Biodegradable Film Blowing Machine
Feature:
1.The structure design of the blowing film unit is reasonable. The extruder, barrel and screw are made of 38CrMoAl high-quality alloy steel
2.After nitriding treatment and precision processing, it has the best hardness and corrosion resistance. The specially designed screw has high output and good plasticization.
3.The main machine and traction adopt frequency frequency control, save energy, adopt surface friction type single winding, the film is smooth and neat.
4.It is suitable for blowing low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE) and other plastic films and pal (corn starch) degradable particles. It is widely used in food, clothing, garbage bags, vest bags and other civil and industrial packaging.
|
Model |
A60-1000 |
|
Screw Diameter |
60mm |
|
Screw Ratio |
30:1 |
|
Screw Speed |
0-100rpm |
|
Max. Output |
30-60kg/h |
|
Max. Folding Width of Film |
300-1000mm |
|
Thickness of Film |
0.01-0.10mm |
|
Main Motor |
22Kw |
|
Total Power |
40Kw |
|
Weight of Machine |
2200kg |
|
Overall Dimensions |
5800x2400×4800mm |
1.Q:Are you machinery factory or trading company?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
