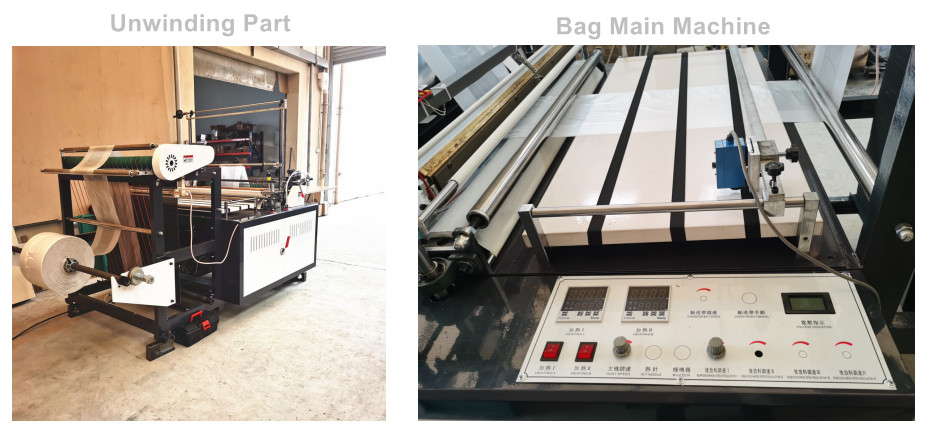

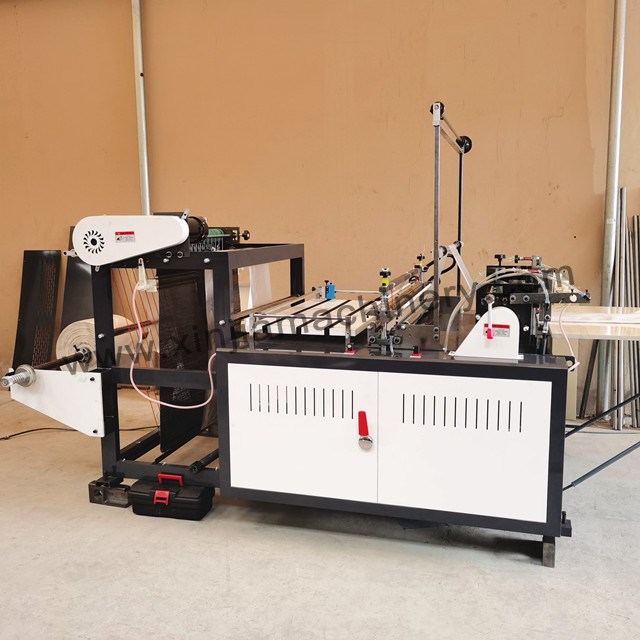

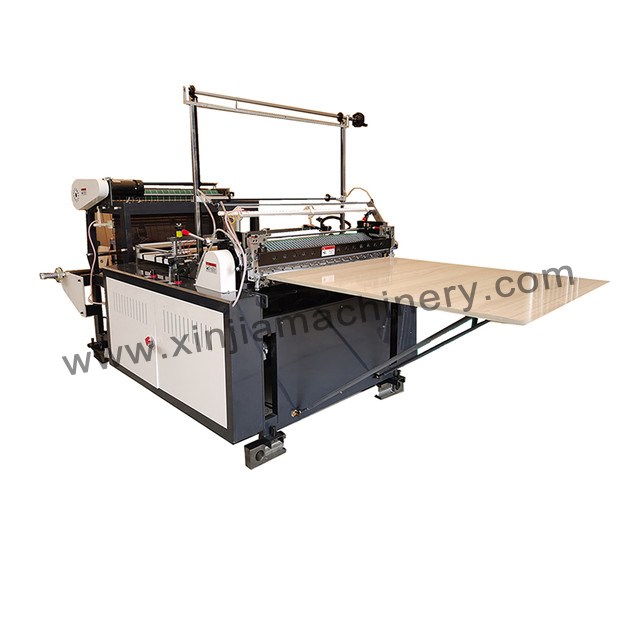

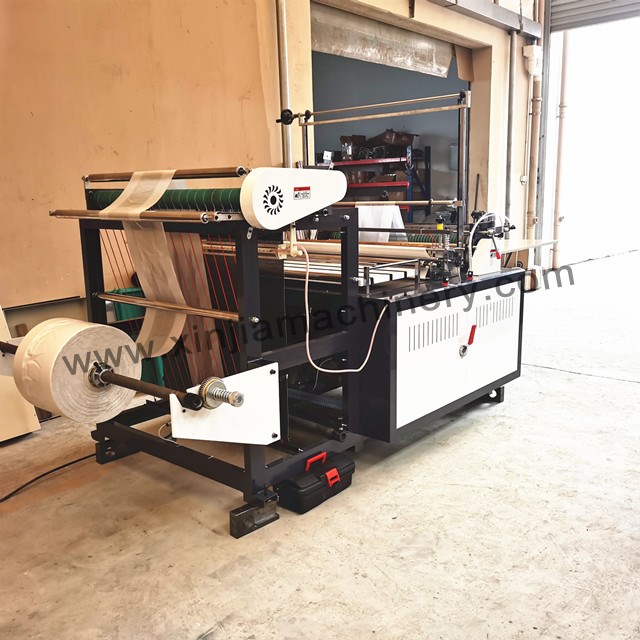

This machine takes the drum films like HDPE,LDPE as material to produce flat bag . 1.Computer automatic control, automatic counting,can be set up the counting alarm , high efficiency, save manpower and time 2.From the roll film to the finished bag ,it's fully automatic and completed at one time 3.Adopt stepper motor to set length automatically,Feeding ,sealing the bottom,cutting off,punching in one process to finished , photoelectric tracking, accurate and stable, feeding adopts photoelectric control; 4.Adopt heat sealing cold cutting device , and intelligent temperature control system to make the bag mouth sealed firmly and smoothly; 5.The host adopts frequency converter to control the speed; 6.It can be used with punching machine.
| Feature |
|

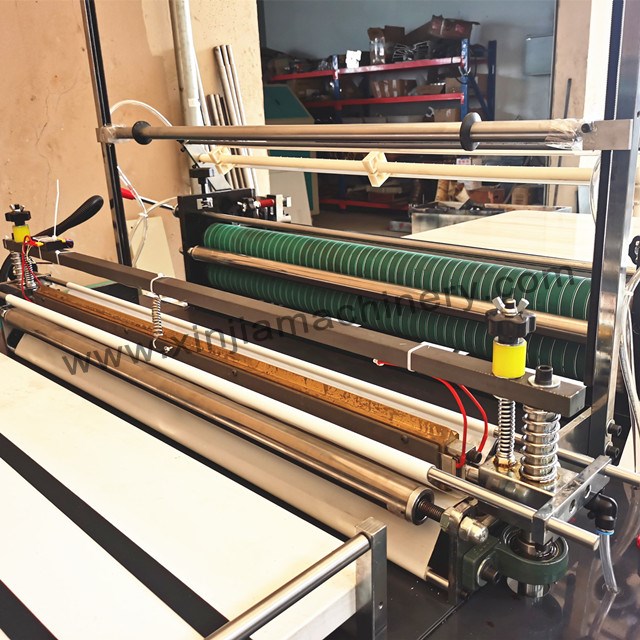

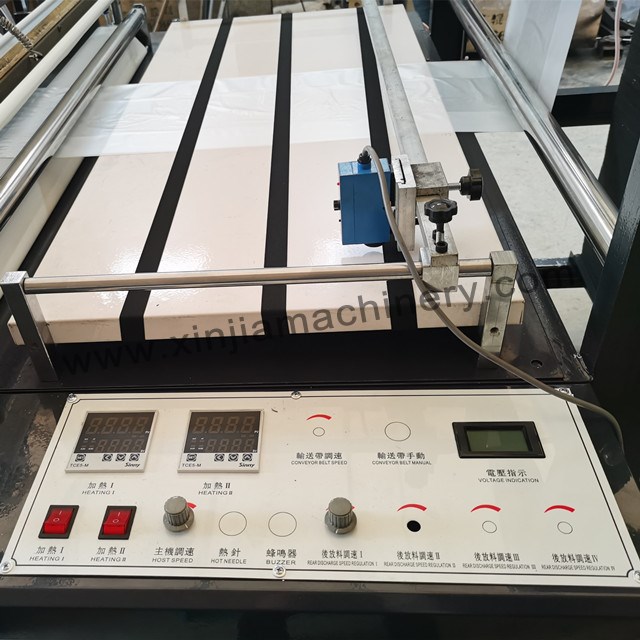

This machine takes the drum films like HDPE,LDPE as material to produce flat bag . 1.Computer automatic control, automatic counting,can be set up the counting alarm , high efficiency, save manpower and time 2.From the roll film to the finished bag ,it's fully automatic and completed at one time 3.Adopt stepper motor to set length automatically,Feeding ,sealing the bottom,cutting off,punching in one process to finished , photoelectric tracking, accurate and stable, feeding adopts photoelectric control; 4.Adopt heat sealing cold cutting device , and intelligent temperature control system to make the bag mouth sealed firmly and smoothly; 5.The host adopts frequency converter to control the speed; 6.It can be used with punching machine. |
|

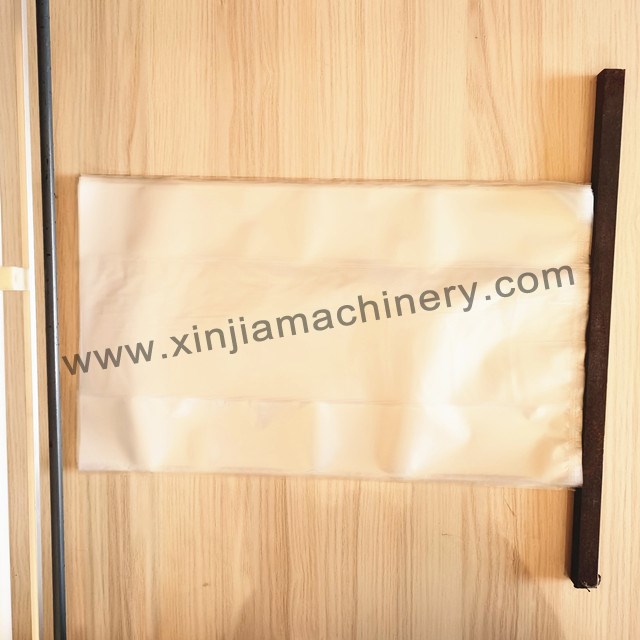

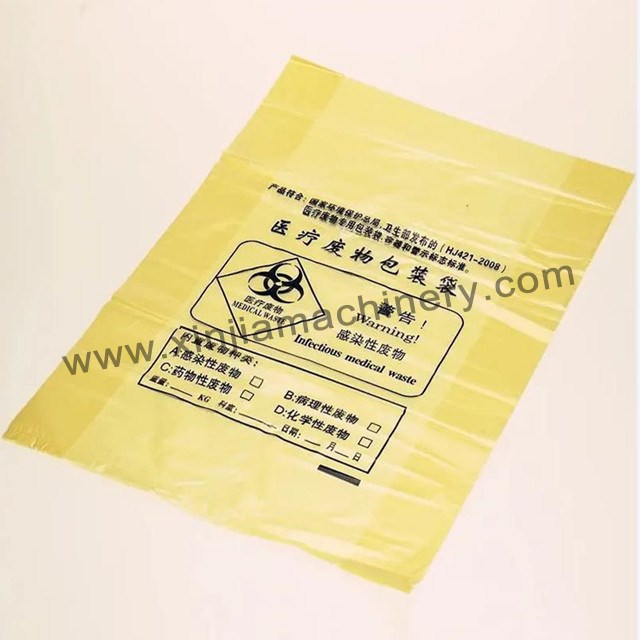

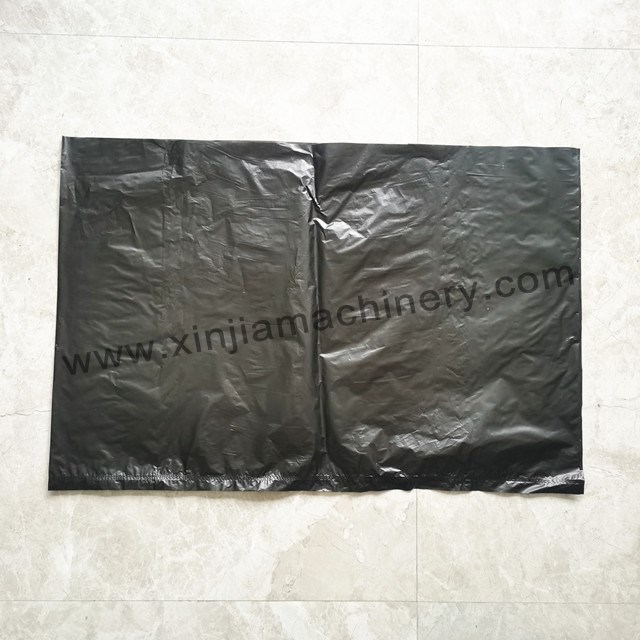

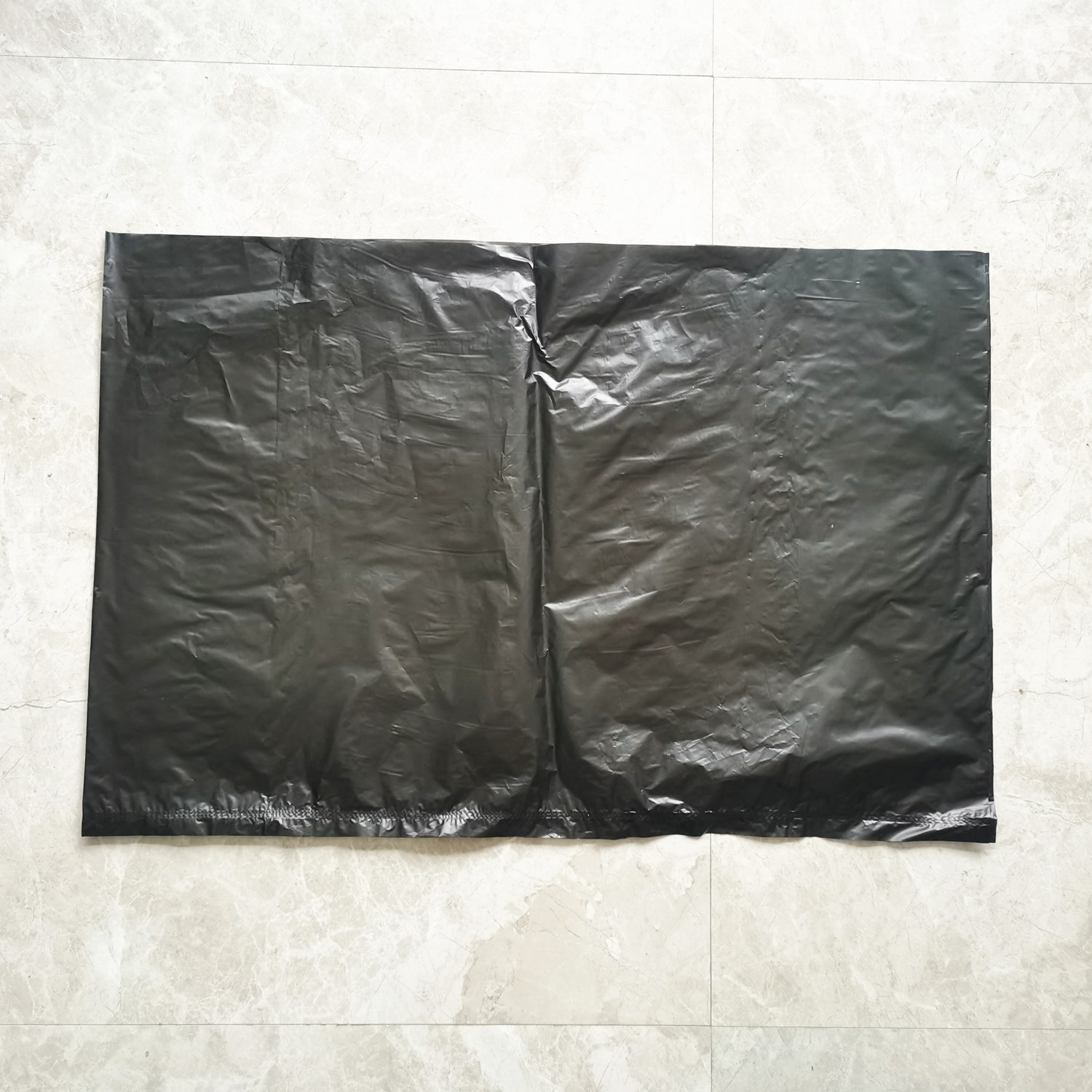

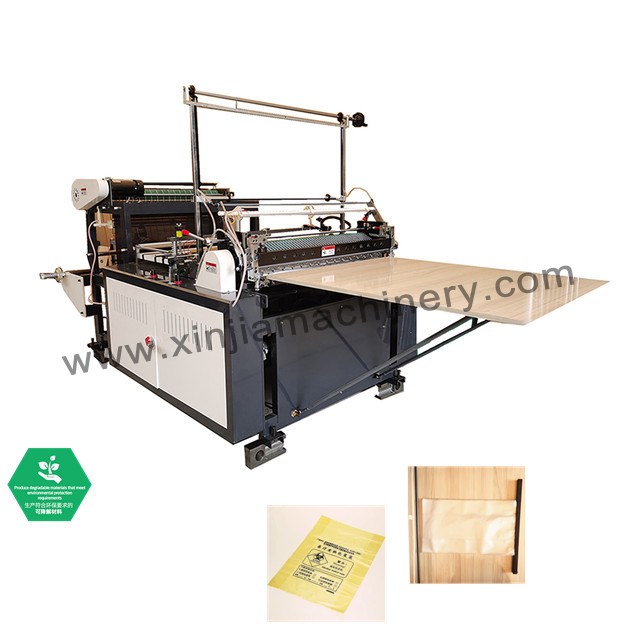

Finished Bag |
|
Main Technical Parameters |
||
| Model | XJBXJ-1000 (single layer ) | XJBXJ-1000x2(double layers) |
| Bag width Max | 920mm | 920mm |
| Bag length | 1800mm | 1800mm |
| Thickness of one layer film | 0.01mm-0.20mm | 0.01mm-0.20mm |
| Production speed | 10-150pcs/min | 10-150pcs/min * 2 layers |
| Total power | 10kw | 10kw |
| Machine weight | 2500kg | 2500kg |
| Overall Dimension(L*W*H) of bag making machine | 2300×1550×1900mm | 2300×1550×1900mm |
| Punching machine (L*W*H) | 3500*1500*2100mm | 3500*1500*2100mm |

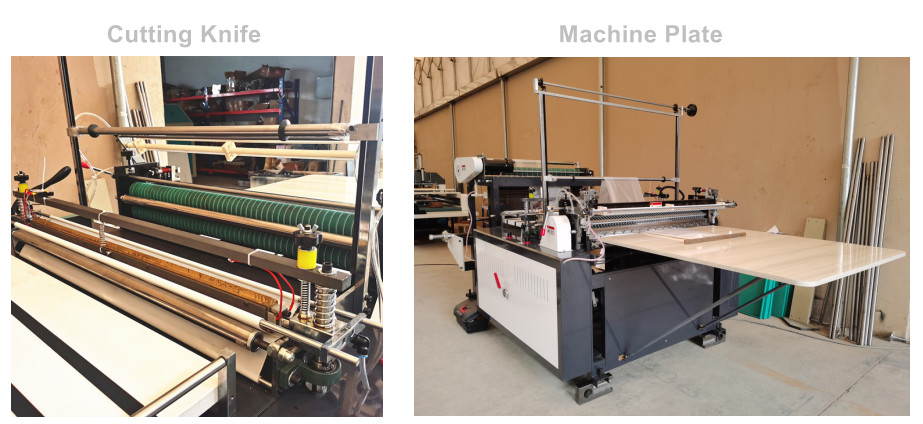

| SPECIFICS |
|
|
Company Brief Introduction
|
|
Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film.
Xinjia machines all equip high quality brand configuration such as INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc.
1.Plastic PE/Biodegradable T-shirt Bag Making Machine
2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change
3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )
4.Rolling PE/Biodegradable t-shirt Bag Making Machine
5.T-Shirt Making Machine With Automatic Folding /Binding
6.Milk Tea Cup Holder Bag Making Machine
7.Calendar Bag Making Machine
8.Garbage Bag Making Machine Coreless
9.Draw Tape Garbage Bag Making Machine
10.Disposable TPE , CPE ,PE Glove Making Machine
Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on.
Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.
|
|

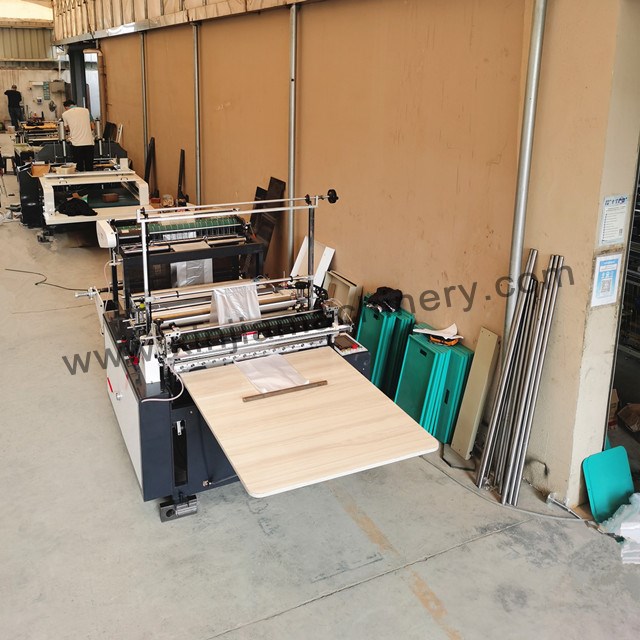

Workshop |
|
Exhibition |
1.Q:Are you machinery factory or trading company?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
