Home  Product  cold-cutting-flat-bag-making-machine-  Single Line Non Stretch Cold Cutting Garbage Flat Bag Making Machine

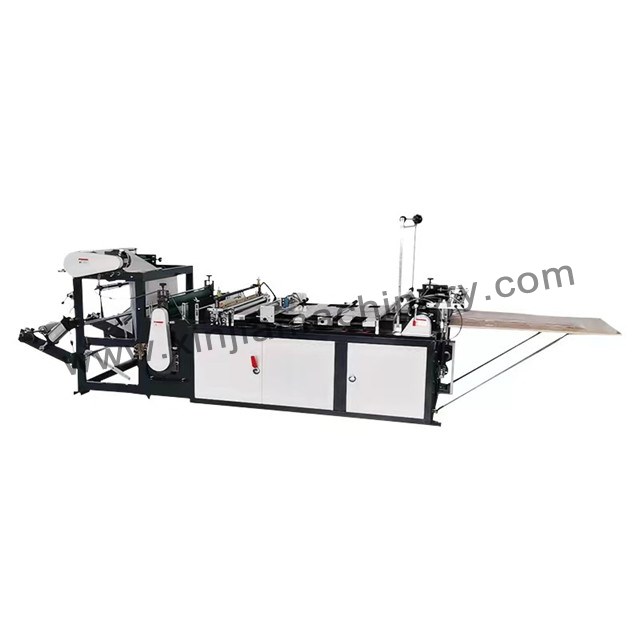

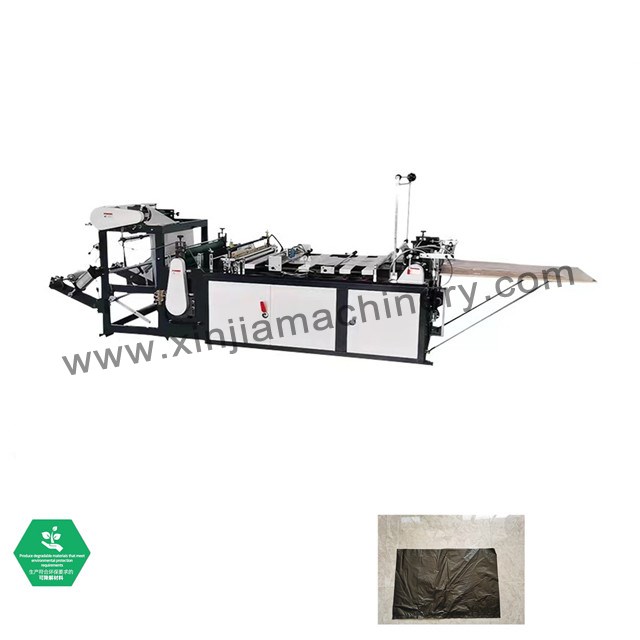

Single Line Non Stretch Cold Cutting Garbage Flat Bag Making Machine

This machine takes the drum films like HDPE,LDPE as material to produce flat bag  . 1.Computer automatic control, automatic counting,can be set up the counting alarm , high efficiency, save manpower and time 2.From  the roll film to the finished bag ,it's fully automatic and completed at one time 3.Adopt stepper motor to set length automatically,Feeding ,sealing the bottom,cutting off,punching in one process to finished  , photoelectric tracking, accurate and stable, feeding adopts photoelectric control; 4.Adopt heat sealing cold cutting device , and intelligent temperature control system to make the bag mouth sealed firmly and smoothly; 5.The host adopts frequency converter to control the speed; 6.It can be used with punching machine.

PRODUCT DETAILS







Feature
This machine takes the drum films like HDPE,LDPE as material to produce flat bag  .
1.Computer automatic control, automatic counting,can be set up the counting alarm , high efficiency, save manpower and time
2.From  the roll film to the finished bag ,it's fully automatic and completed at one time
3.Adopt stepper motor to set length automatically,Feeding ,sealing the bottom,cutting off,punching in one process to finished  , photoelectric tracking, accurate and stable, feeding adopts photoelectric control;
4.Adopt heat sealing cold cutting device , and intelligent temperature control system to make the bag mouth sealed firmly and smoothly;
5.The host adopts frequency converter to control the speed;
6.It can be used with punching machine.

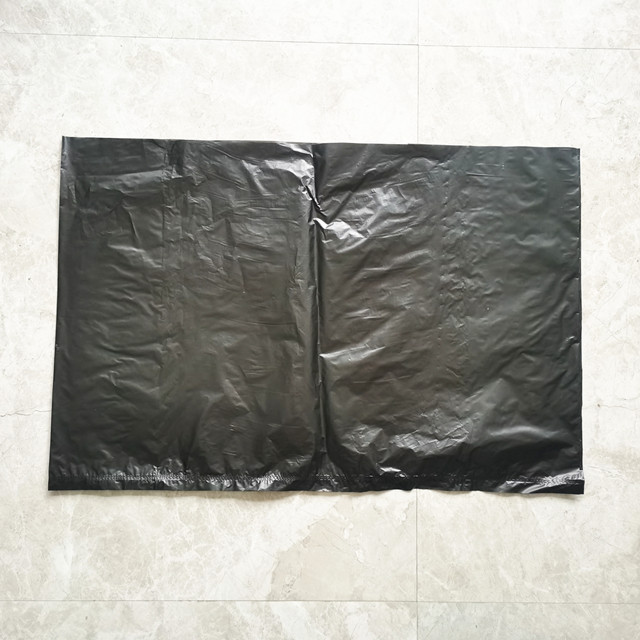

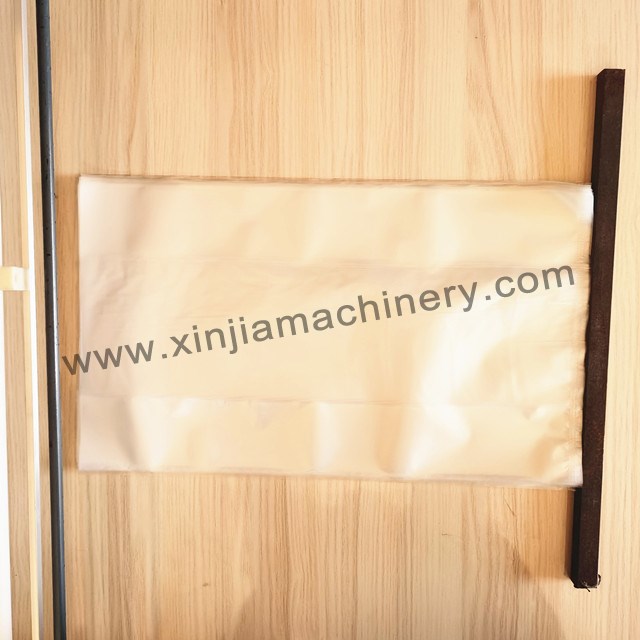

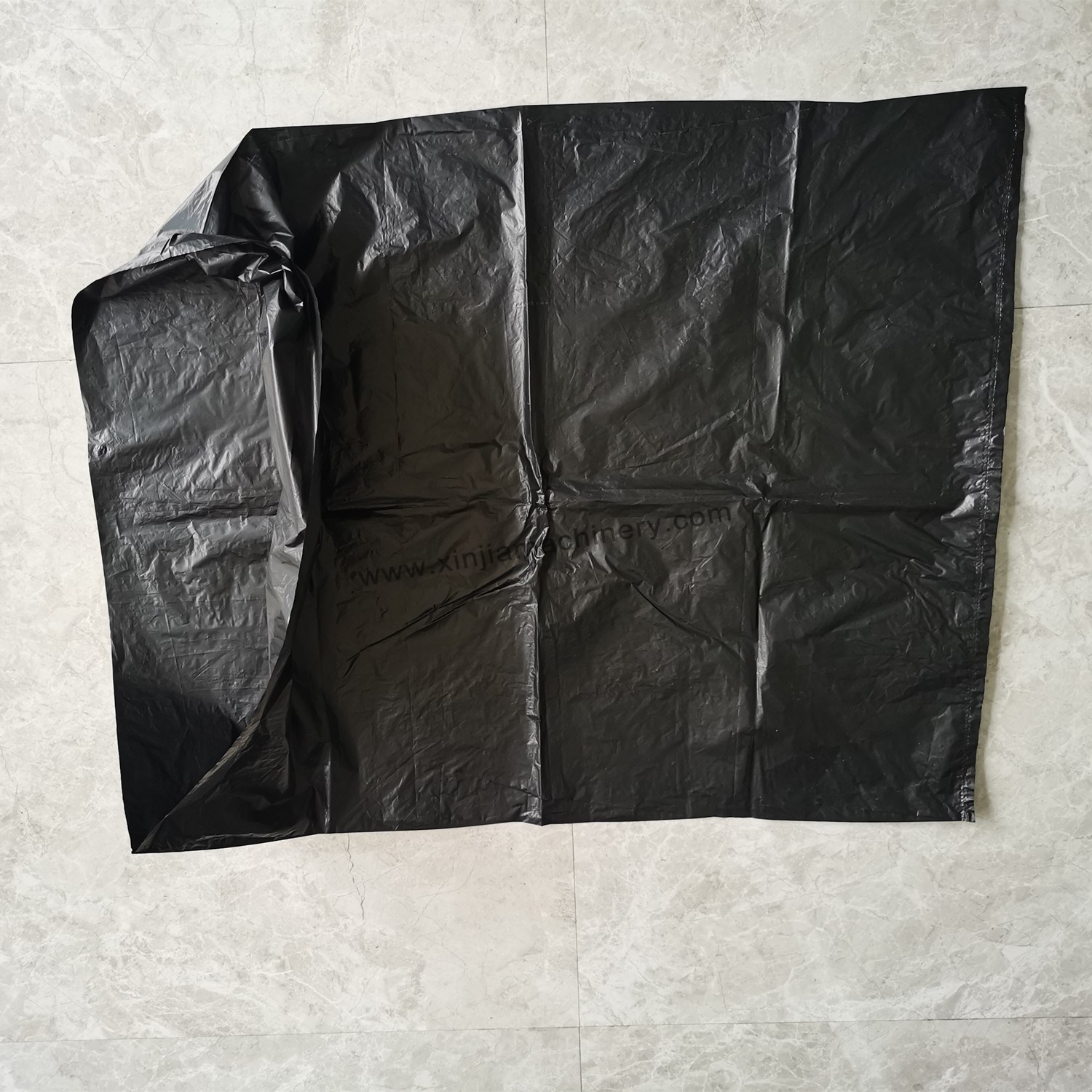

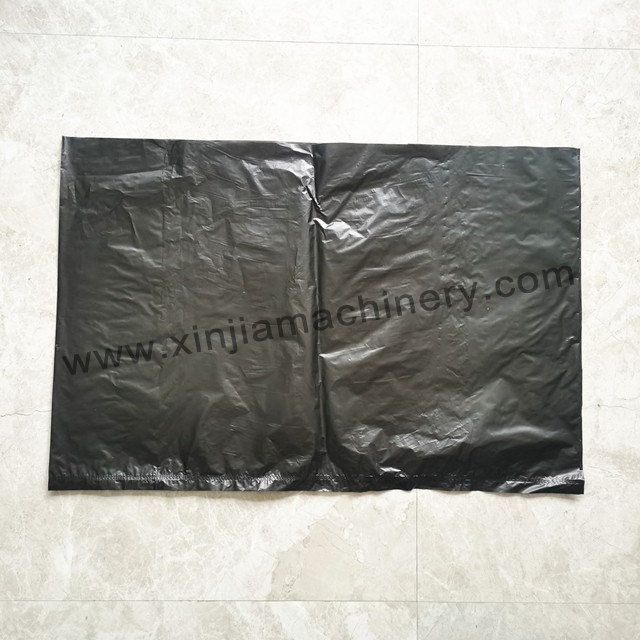

 Finished Bag

Main Technical Parameters
Model XJBXJ-1000 (single layer ) XJBXJ-1000x2(double layers)
Bag width Max 920mm 920mm
Bag length 1800mm 1800mm
Thickness of one layer film 0.01mm-0.20mm 0.01mm-0.20mm
Production speed 10-150pcs/min  10-150pcs/min * 2 layers
Total power 10kw 10kw
Machine weight 2500kg 2500kg
Overall Dimension(L*W*H) of bag making machine 2300×1550×1900mm 2300×1550×1900mm
Punching machine (L*W*H) 3500*1500*2100mm 3500*1500*2100mm



Company Brief Introduction
Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film.

Xinjia machines all equip high quality brand configuration such as  INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc.


1.Plastic PE/Biodegradable  T-shirt Bag Making Machine
2
.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change
3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )
4.Rolling PE/Biodegradable t-shirt Bag Making Machine

5.T-Shirt Making Machine With Automatic Folding /Binding
6.Milk Tea Cup Holder Bag Making Machine
7.Calendar Bag Making Machine
8.Garbage Bag Making Machine Coreless
9.Draw Tape Garbage Bag Making Machine
10.Disposable TPE , CPE ,PE Glove Making Machine

Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on.
Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.

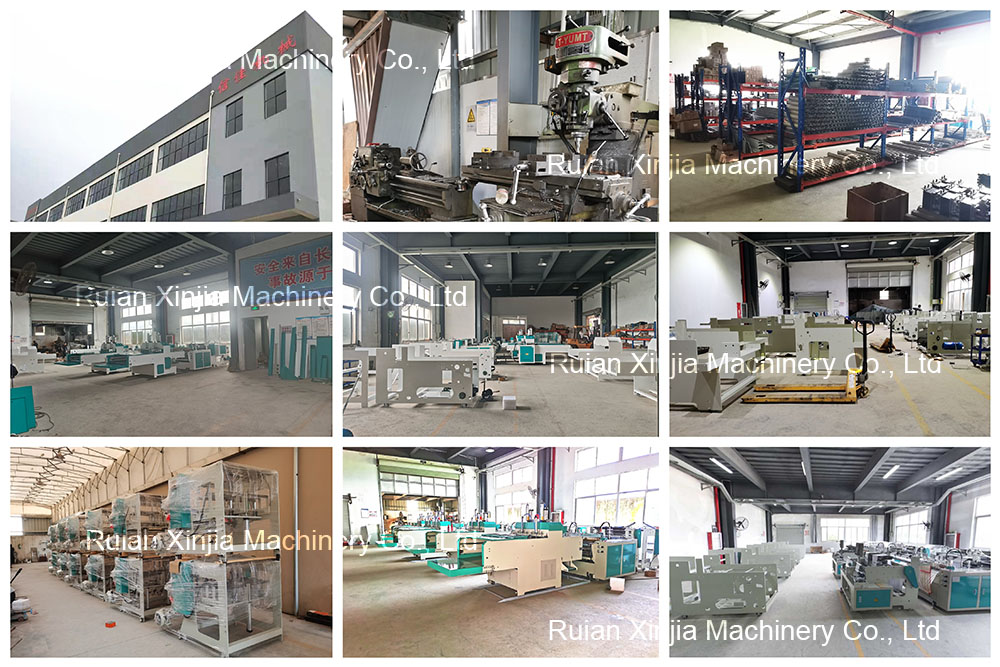

Workshop

Exhibition


FAQ:

1.Q:Are you machinery factory or trading company?

A:Yes,We are machinery factory,and we are professional manufacturer for 21 years
and focus on bag making machine,printing machine,film blowing machine,etc.

2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.

3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 25-30 days

5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
7.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as   INOVANCE,DELTA,NSK,F&C,SMC,PANASONIC,FOTEK,AIRTAC,IDEC etc. And all our machine will do running test before shipping.
8 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
9.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
10.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
